FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

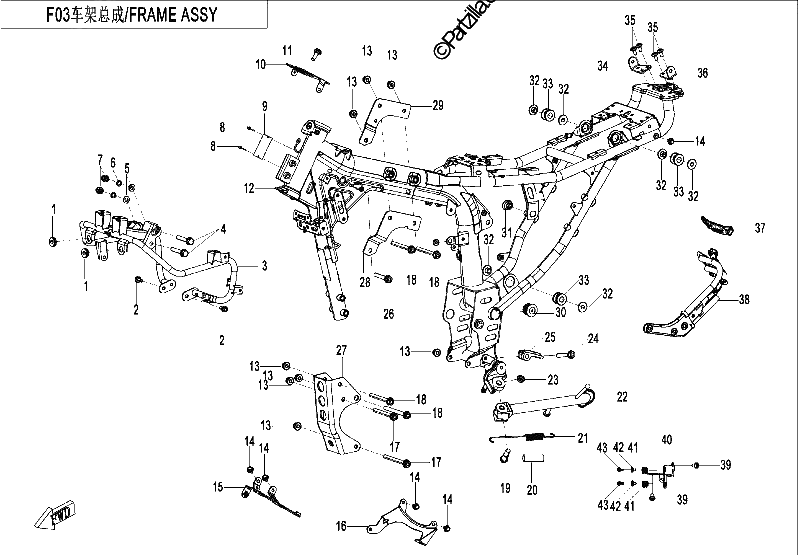

Diagrama de FRAME

Repuestos

#1
5BY0-040010
RUBBER SLEEVE
$2.49¢1 244
1
#2
30006-060016810
BOLT M6X16
$1.36¢681
1
#3
6FIV-030400-7101
FRONT BRACKET ASSEMBLY
$62.49¢31 244
1
#4
30006-080045810
BOLT M8X45
$2.49¢1 244
1
#5
30303-080112
WASHER
$1.36¢681
1
#6
30306-080112
WASHER
$1.36¢681
1
#7
30206-080510
NUT M8
$1.36¢681
1
#8
30902-0401320
BLIND RIVET
$1.36¢681
1
#9
6KJC-190012-8000
VEHICLE PLATE
No Disponible
1
#9
6FIA-190012
VEHICLE PLATE
No Disponible
1
#10
6FIV-030001-7100
DASHBOARD BRACKET
$6.24¢3 119
1
#11
30102-080016810
INNER HEX BOLT
$1.36¢681
1
#12
6FIV-031000-7101-01
FRAME ASSEMBLY
No Disponible
1
#13
30204-080810
NUT M8
$1.36¢681
1
#14
6WWV-046702-5000
INNER HEX SCREW M6X12
$1.36¢681
1
#15
6FIV-030020-7100
ENGINE RIGHT HAND GUARD BRACKET
$8.74¢4 369
1
#16
6FIV-030010-7100
ENGINE LEFT HAND GUARD BRACKET
$9.99¢4 994
1
#17
30006-080085810
BOLT M8X85
$2.49¢1 244
1
#18
30006-080075810
BOLT M8X75
$2.49¢1 244
1
#19
A000-030006
BOLT, SIDE STAND
$3.74¢1 869
1
#20
A000-030004
SPRING COLLAR, SIDE STAND
$3.74¢1 869
1
#21
6KMV-030060-C000
SPRING KIT, SIDE STAND
$12.49¢6 244
1
#22
6FIV-030600-7101
SIDE STAND ASSEMBLY
$24.99¢12 494
1
#23
30208-102010
NUT M10X1.25
$1.36¢681
1
#24
30006-060035810
BOLT M6X35
$1.36¢681
1
#25
6KJ0-030510
CHAIN GUARD
$6.24¢3 119
1
#26
30006-080050810
BOLT M8X50
No Disponible
1
#27
5280-030004-1000
FRONT UPPER SWING ARM, LEFT HAND, BLACK
$23.74¢11 869
1
#28
6FI2-030002
LEFT HAND UPPER BRACKET, ENGINE ELECTROPHORESIS BLACK
$6.24¢3 119
1
#29
6FIV-030050-7100
ENGINE RIGHT HAND UPPER BRACKET
$6.24¢3 119
1
#30
6KJ0-030503
RUBBER PLUG
$2.49¢1 244
1
#31
8080-040064
DAMPER, FRONT FENDER
$1.36¢681
1
#32
6WWV-020002-5001
BUSHING, MUFFLER BODY
$2.49¢1 244
1
#33
6WWV-020003-5000
RUBBER SLEEVE, MUFFLER BODY
$2.49¢1 244
1
#34
6FIV-030040-7100
REAR SEAT RIGHT HAND BRACKET
$3.74¢1 869
1
#35
6WWV-046802-5000
INNER HEX SCREW M6X16
$1.36¢681
1
#36
6FIV-030030-7100
REAR SEAT LEFT HAND BRACKET
$3.74¢1 869
1
#37
6FIV-030009-7100
REAR LICENSE BRACKET
No Disponible
1
#38
6FIV-030300-7100
REAR FENDER
$62.49¢31 244
1
#39
30006-060010810
BOLT M6X10
$1.36¢681
1
#40
6FIV-030002-7000
ABS BRACKET
$8.74¢4 369
1
#41
6WWV-030019-5000
RUBBER BUSHING
$1.36¢681
1
#42
6AQV-021002-1000
BUSHING
$2.49¢1 244
1
#43
30006-060022810
BOLT M6X22
$1.36¢681
1
