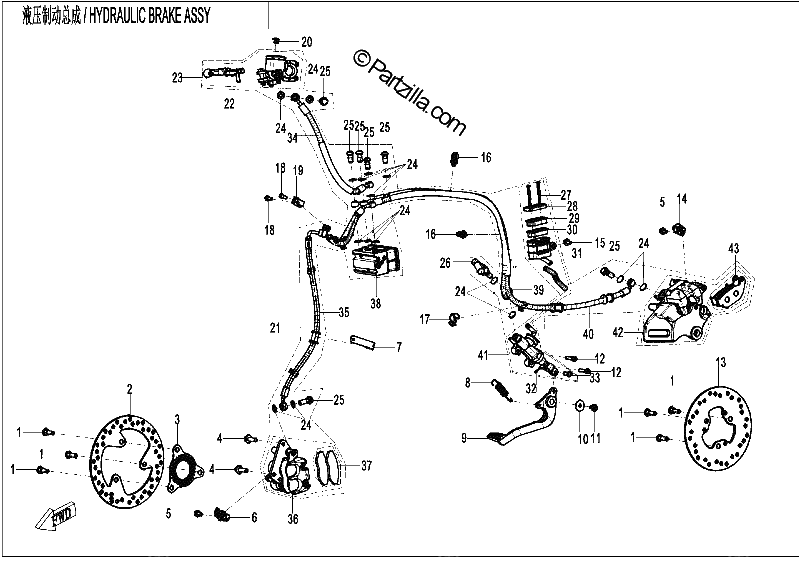

MAB BRAKE ASSY
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BOLT, BRAKE DISC
$1.36¢681
#2
FRONT BRAKE DISC
$37.49¢18 744
#3
FRONT GEAR RING
$13.74¢6 869
#4
BOLT M8X25
$2.49¢1 244
#5
BOLT M6X12
$0.75¢375
#6
SPEED SENSOR
$42.49¢21 244
#7
BRAKE FLUID CLIP 2
$2.49¢1 244
#8
RETURN SPRING, REAR BRAKE
$2.49¢1 244
#9
REAR BRAKE PEDAL ASSEMBLY
$32.49¢16 244
#10
WASHER 1
$2.49¢1 244
#11
INNER HEX SCREW M6X12
$1.36¢681
#12
SCREW M6X25
$1.36¢681
#13
REAR BRAKE DISC ASSEMBLY
$62.49¢31 244
#14
SPEED SENSOR
$43.74¢21 869
#15
BOLT M6X12
$0.75¢375
#16
TIE BAND
$1.36¢681
#17
WIRE CLIP, BRAKE FLUID HOSE
$2.49¢1 244
#18
SCREW M6X12
$1.36¢681
#19
BRAKE FLUID BRACKET
$3.74¢1 869
#20
RUBBER PLUG, CLUTCH LEVER
$1.36¢681
#21
MAB HYDRAULIC BRAKE ASSEMBLY
No Disponible
#22
HAND BRAKE PUMP ASSEMBLY
$174.99¢87 494
#23
BRAKE LEVER
$24.99¢12 494
#24
SEALING WASHER
$3.74¢1 869
#25
BOLT, FUEL PIPE
$8.74¢4 369
#27
SCREW, FLUID RESERVOIR CAP
$11.24¢5 619
#28
CAP, FLUID RESERVOIR
$17.49¢8 744
#29
SEALING LINER, FLUID RESERVOIR
$12.49¢6 244
#30
SEALING GASKET, FLUID RESERVOIR
$12.49¢6 244
#31
FLUID RESERVOIR
$62.49¢31 244
#32
COTTER PIN. 2.0X16
$2.49¢1 244
#33
PIN SHAFT
$2.49¢1 244
#34
FLUID INLET PIPE, FRONT BRAKE
$28.74¢14 369
#35
FRONT BRAKE FLUID OUTLET HOSE
$28.74¢14 369
#36
FRONT BRAKE CALIPER ASSEMBLY
$149.99¢74 994
#37
FRONT BRAKE PAD ASSEMBLY
$37.49¢18 744
#38
MAB EXECUTION UNIT
$749.99¢374 994
#39
FLUID INLET PIPE, REAR BRAKE
$41.24¢20 619
#40
REAR BRAKE FLUID OUTLET HOSE
$49.99¢24 994
#41
REAR BRAKE MASTER CYLINDER
$112.49¢56 244
#42
REAR BRAKE CALIPER ASSEMBLY
$212.49¢106 244
#43
REAR BRAKE PAD ASSEMBLY
$37.49¢18 744
