REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

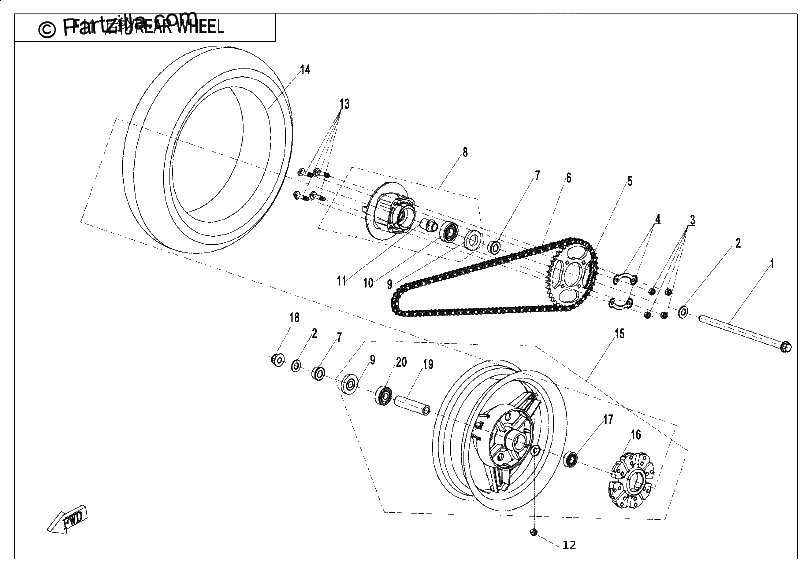

Diagrama de REAR WHEEL

Repuestos

#1
6FIV-110001-7100
REAR WHEEL SHAFT
$21.84¢10 919
1
#2
30306-140112
WASHER 14
$1.25¢627
1
#3
30200-080810
NUT M8
$2.29¢1 144
1
#4
6KJ0-110004
LOCK PLATE
$1.14¢569
1
#5
6FI2-110003-10000
REAR SPROCKET
$28.74¢14 369
1
#6
3120951
CHAIN
$34.49¢17 244
1
#7
6KJ0-110001-10000
RIGHT HAND SHAFT SLEEVE, REAR WHEEL
$4.59¢2 294
1
#8
6090-112100
SEAT, SPROCKET
$45.99¢22 994
1
#9
30500-027800N
OIL SEAL FB27X47X7
$5.74¢2 869
1
#10
30400-02001
BEARING 6204 RS
$9.19¢4 594
1
#11
5280-112101
SHAFT SLEEVE
$9.19¢4 594
1
#12
5190-070030-1000
VALVE, INFLATION
$5.74¢2 869
1
#13
6KJ0-110003
BOLT
$1.25¢627
1
#14
30704-1210
TYRE
No Disponible
1
#16
6KJV-110004-8000
DAMPING RUBBER, SPROCKET SEAT
$11.49¢5 744
1
#17
30400-01580
BEARING 6202 2RS
$3.44¢1 719
1
#18
30204-143810
NUT M14X1.5
$2.29¢1 144
1
#19
6FIV-110102-6000
CENTER SPACER, REAR RIM
$6.89¢3 444
1
#20
30400-01583
BEARING 6302 2RS
$6.89¢3 444
1
