REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

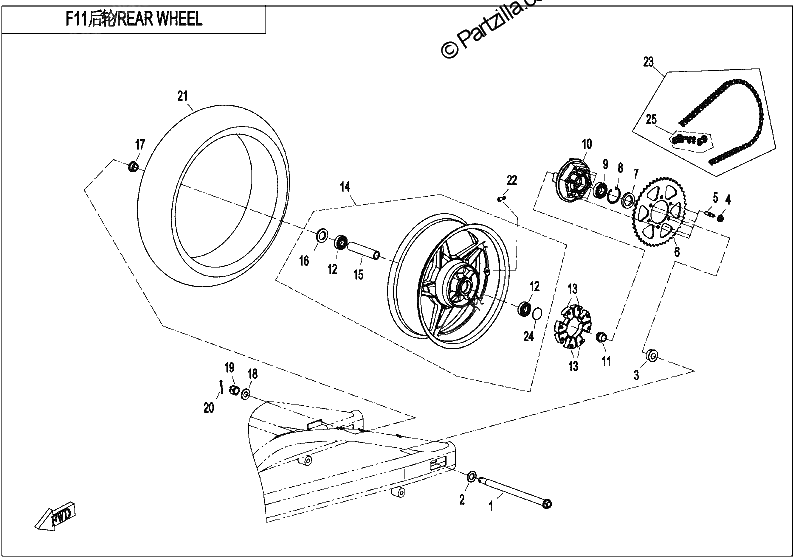

Diagrama de REAR WHEEL

Repuestos

#1
A000-110001
SHAFT, REAR WHEEL
$124.99¢62 494
1
#2
30306-200112
WASHER
$1.36¢681
1
#3
A000-110002
LEFT HAND SHAFT SLEEVE, REAR WHEEL
$18.74¢9 369
1
#4
30204-102810
NUT M10X1.25
$1.36¢681
1
#5
30020-102025410
STUD
$3.74¢1 869
1
#6
6NTG-110004-10000
REAR SPROCKET
No Disponible
1
#7
30501-035800N
OIL SEAL FB35X52X8
$3.74¢1 869
1
#8
30800-05205
CIRCLIP FOR HOLE 52
$3.74¢1 869
1
#9
30400-02503
BEARING 6205 2RS
$22.49¢11 244
1
#11
A000-110005-10000
SHAFT BUSHING, SPROCKET SEAT
$14.99¢7 494
1
#12
30400-02001
BEARING 6204 RS
$9.99¢4 994
1
#13
A000-110007
DAMPER SPROCKET SEAT
$12.49¢6 244
1
#15
6NQV-111102-2000
CENTER SPACER, REAR RIM
$8.74¢4 369
1
#16
30501-028800N
OIL SEAL
$7.49¢3 744
1
#17
6NT1-110003
WASHER, REAR WHEEL AXLE
$17.49¢8 744
1
#18
A000-110009
WASHER
$3.74¢1 869
1
#19
A000-110011
NUT, REAR WHEEL
$9.99¢4 994
1
#20
30903-0403610
COTTER PIN 40X36
$1.36¢681
1
#21
30705-1752
TYRE
No Disponible
1
#22
5190-070030-1000
VALVE, INFLATION
$6.24¢3 119
1
#23
3120908
CHAIN DID520VP2
No Disponible
1
#24
30503-060800N
O RING 60X3.10
$3.74¢1 869
1
#25
6NQ0-110310
RIVETED BUCKLE, CHAIN
$22.49¢11 244
1
