FRONT SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

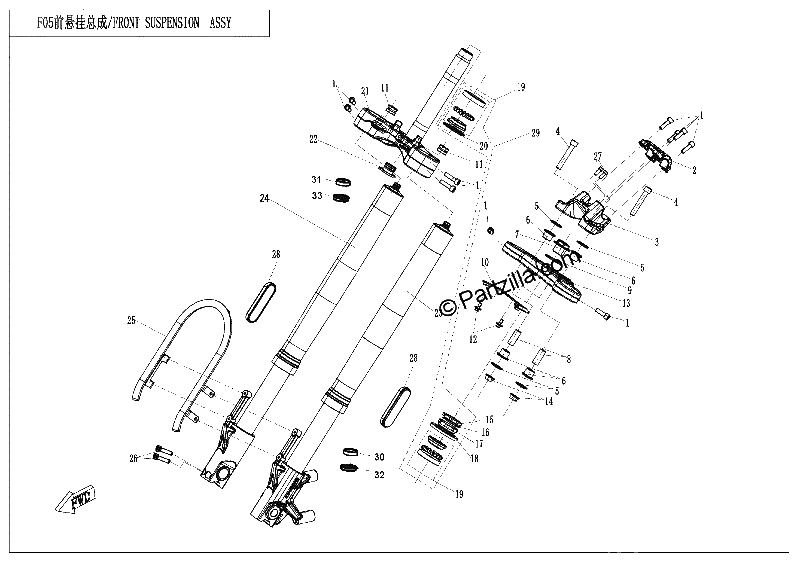

Diagrama de FRONT SUSPENSION

Repuestos

#1
30102-080025870
INNER HEX SCREW M8X25
$3.44¢1 719
1
#2
6GU-050001-6000
PRESS COVER, HANDLEBAR
$33.34¢16 669
1
#3
6GU-050002-6000
BRACKET, HANDLEBAR
$91.99¢45 994
1
#4
30102-060016870
SCREW M6X16
$1.25¢627
1
#5
6KJ0-050005
WASHER
$1.25¢627
1
#6
6KJ0-050004
DAMPER RUBBER,UPPER HOLDER
$1.25¢627
1
#7
6NTA-050003
LOCK SCREW, UPPER TRIPLE CLAMP
$13.79¢6 894
1
#8
6KJ0-050006-00001
LINER, UPPER CONNECTING PLATE
$2.29¢1 144
1
#9
A000-050004
WASHER
$1.25¢627
1
#11
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.25¢627
1
#12
30006-060012870
BOLT M6X12
$0.69¢345
1
#13
6GUV-050003-6002
UPPER TRIPLE CLAMP
$183.99¢91 994
1
#14
30204-102810
NUT M10X1.25
$1.25¢627
1
#15
A000-050006
LOCK NUT
$5.74¢2 869
1
#16
A000-050008
WASHER
$1.25¢627
1
#17
A000-050007
LOCK NUT
$5.74¢2 869
1
#18
A000-050009
DUST SEAL, UPPER
$1.25¢627
1
#19
A000-050100-10000
STEERING BEARING ASSEMBLY
$34.49¢17 244
1
#20
A000-050400
ANTI DUST CAP, LOWER RETAINING RING
$3.44¢1 719
1
#21
6GU-050030-6000
LOWER TRIPLE CLAMP ASSEMBLY
$310.49¢155 244
1
#22
A000-050011
RUBBER PLUG 2
$2.29¢1 144
1
#23
6GUV-050100-9000-M1
FRONT Left Hand SHOCK ABSORBER
$1034.99¢517 494
1
#24
6GUV-050200-9000-M1
FRONT Right Hand SHOCK ABSORBER
$1034.99¢517 494
1
#26
30102-080040870
SCREW M8X40
$2.29¢1 144
1
#27
30102-102060810
SCREW M10X60X1.25
$2.29¢1 144
1
#28
6KJV-160920-8001-M1
FRONT SIDE REFLECTOR
$4.59¢2 294
1
#29
A000-0501B0
STEERING BEARING ASSEMBLY
$80.49¢40 244
1
#30
6GU-050200-6001-24
OIL SEAL
$22.99¢11 494
1
#31
6GU-050200-6001-24
OIL SEAL
$22.99¢11 494
1
#32
6GU-050200-6001-25
DUST CAP
$9.19¢4 594
1
#33
6GU-050200-6001-25
DUST CAP
$9.19¢4 594
1
