COOLING SYSTEM 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

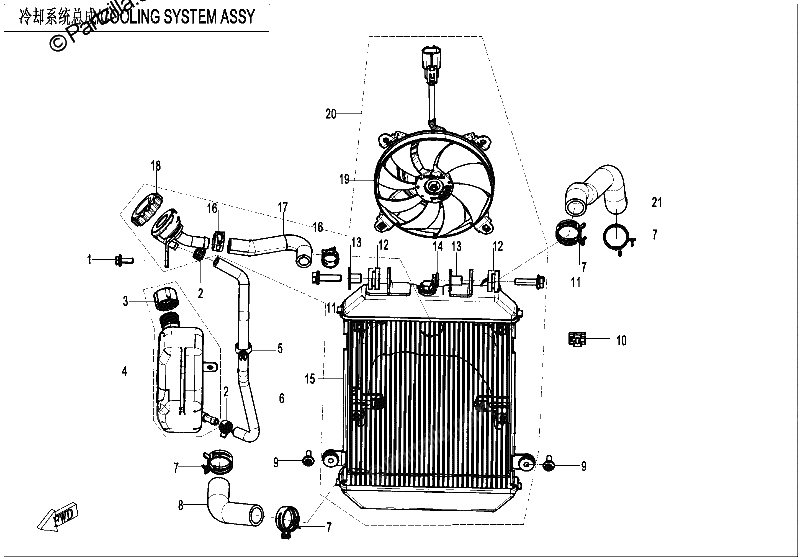

Diagrama de COOLING SYSTEM 1

Repuestos

#1
30006-060016810
BOLT M6X16
$1.25¢627
1
#2
30601-212570
CLAMP D12.5
$2.29¢1 144
1
#3
6AQV-180110-4000
RESERVOIR CAP ASSEMBLY
$2.29¢1 144
1
#4
6AQV-180100-7100
RESERVOIR ASSEMBLY
No Disponible
1
#5
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#6
6AQV-180003-7100
CONNECTING PIPE, RESERVOIR
$5.74¢2 869
1
#7
30601-229060
CLAMP D29
$4.59¢2 294
1
#8
6AQV-180002-7100
WATER OUTLET PIPE, RADIATOR
$8.04¢4 019
1
#9
6WWV-047002-5000
INNER HEX SCREW M6X25
$1.25¢627
1
#10
CFCV-CAC002-2000-M1
CLIP
$2.29¢1 144
1
#11
30006-080030870
BOLT M8X30
$2.29¢1 144
1
#12
A000-180005
DAMPER, RADIATOR
$4.59¢2 294
1
#13
A000-180010-20000
COLLAR, RADIATOR
$2.29¢1 144
1
#14
30202-080110
NUT M8
$1.25¢627
1
#15
6AQV-181100-7101
RADIATOR ASSEMBLY
$333.49¢166 744
1
#17
6AQV-181300-7100
TUBE
$9.19¢4 594
1
#18
6AQV-181500-7100
FILLER CAP ASSEMBLY
$42.54¢21 269
1
#19
6AQV-181200-7100
FAN MOTOR ASSEMBLY
$229.99¢114 994
1
#20
6AQV-181000-7101
RADIATOR FAN ASSEMBLY
$735.99¢367 994
1
#21
6AQV-180001-7100
WATER INLET PIPE, RADIATOR
$13.79¢6 894
1
