TRANSMISSION SYSTEM 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

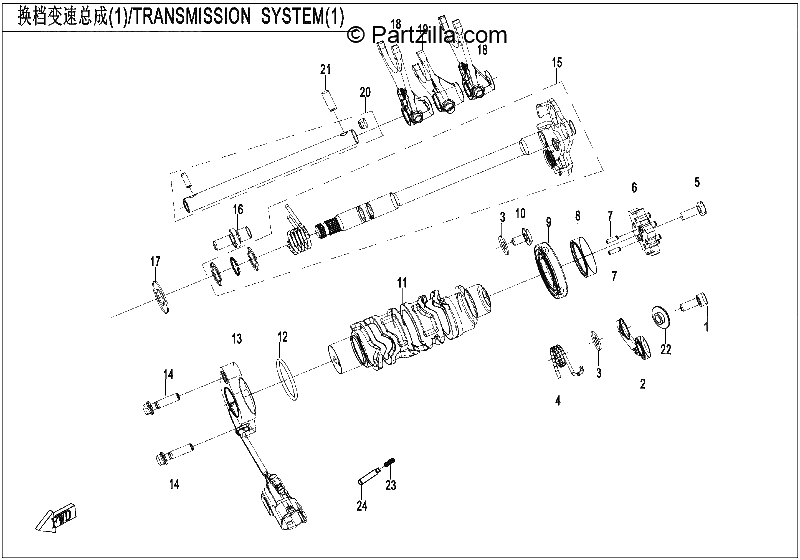

Diagrama de TRANSMISSION SYSTEM 1

Repuestos

#1
30102-060016810
SCREW M6X16
$1.25¢627
1
#2
0SQV-065100-1000
SPRING, ROCKER ARM
$13.79¢6 894
1
#3
0700-064001
WASHER 6.3X16.3X1.2
$1.25¢627
1
#4
0DM0-065001
SPRING, SWING ARM, GEARSHIFT
$1.25¢627
1
#5
30004-060016110
BOLT M6X16
No Disponible
1
#6
0SQV-064100-1002
CAM, GEARSHIFT DRUM
$18.39¢9 194
1
#7
30406-00303
NEEDLE BEARING
$1.25¢627
1
#8
0SQV-064002-1000
BUSHING, SHIFT DRUM
$5.74¢2 869
1
#9
30400-02505
BEARING
$11.49¢5 744
1
#10
0010-090005-0010
BOLT M6X16
$1.25¢627
1
#11
0SQV-064001-1001
SHIFT DRUM
$50.59¢25 294
1
#12
0SQV-060012-1000
O RING 31X2.5
$1.25¢627
1
#13
0SQV-060400-1000
GEAR SENSOR ASSEMBLY
No Disponible
1
#14
0010-021017-0010
BOLT M6X25
$1.25¢627
1
#15
0SQV-063000-1003
GEARSHIFT LEVER ASSEMBLY
$36.79¢18 394
1
#16
0DM0-063002-00001
SHIFT POSITION SPRING PIN
$3.44¢1 719
1
#17
0SQV-060013-1000
WASHER 14X28X1
$1.25¢627
1
#18
0SQV-060002-1000
SHIFT FORK (Left Hand&Right Hand)
$18.39¢9 194
1
#19
0SQV-060003-1000
SHIFT FORK (MIDDLE)
$18.39¢9 194
1
#20
0SQV-060102-1002
FORK SHAFT
$45.99¢22 994
1
#21
0SQV-060015-1001
DOWEL PIN 6
$3.44¢1 719
1
#22
0700-064003
SLEEVE, SWING ARM, GEARSHIFT
$3.44¢1 719
1
#23
0700-063007
SPRING, CONTACTOR
$3.44¢1 719
1
#24
0700-063008
BALL CONTACTOR
$4.59¢2 294
1
#25
30801-01405
CIRCLIPS FOR SHAFT14
$2.29¢1 144
1
