ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

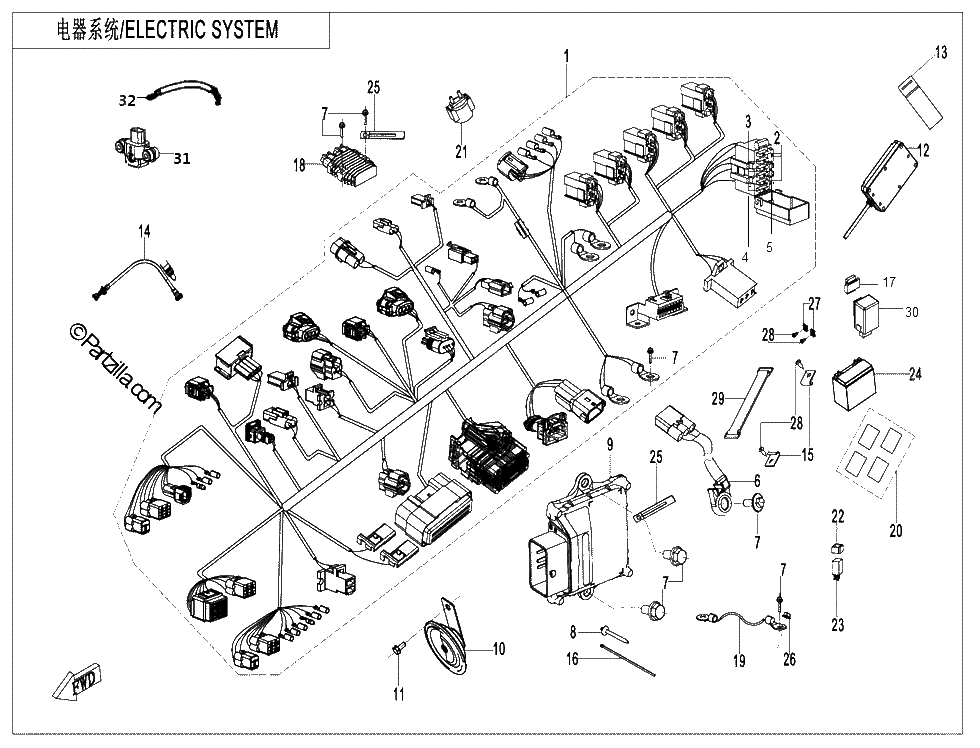

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
6AQV-150100-1200
MAIN CABLE
$999.99¢499 994
1
#2
806A-151302
FUSE 10A
$3.74¢1 869
1
#3
806A-151307
25A FUSE
$1.36¢681
1
#4
806A-151305
FUSE (15A)
$2.49¢1 244
1
#5
8010-151301
FUSE(5A)
$1.24¢619
1
#6
6KMV-151500-3000
SIDE STAND SWITCH ASSEMBLY
$32.49¢16 244
1
#7
8010-090005
BOLT M6X16
$1.36¢681
1
#8
801F-100101
TIE BAND
$1.36¢681
1
#9
6AQV-001000-2000
ECM
$499.99¢249 994
1
#10
6NT1-150600
HORN
$12.49¢6 244
1
#11
30006-080016870
BOLT M8X16
$1.36¢681
1
#12
SN1V-691100-1301-11
T BOX NFA
$999.99¢499 994
1
#13
6KMV-150901-B002
RUBBER RING, T BOX
$2.49¢1 244
1
#14
0HU0-176000
OXYGEN SENSOR
$237.49¢118 744
1
#15
A000-030005
TIE BAND BRACKET, TOOLS KIT
$1.36¢681
1
#16
8010-150003
TIE BAND 5X250
$1.36¢681
1
#17
6100-150500
RUBBER BAND,FLASHER
$1.24¢619
1
#18
6AQV-151000-1000
REGULATOR
$124.99¢62 494
1
#19
6AQV-150420-1001
NEGATIVE CABLE, BATTERY
$38.88¢19 438
1
#20
9010-120008
SPONGE DAMPER, FUEL TANK
$3.74¢1 869
1
#21
9CR6-150310
STARTER RELAY
$49.99¢24 994
1
#22
9010-150002
AUXILIARY RELAY
$2.49¢1 244
1
#23
5BY4-150330
AUXILIARY RELAY
$7.55¢3 775
1
#24
31021200
BATTERY DYNAVOLT MG12 BS C
$112.49¢56 244
1
#25
0180-014010
WIRE CLAMP
No Disponible
1
#26
30204-060810
NUT M6
$1.36¢681
1
#27
8080-000002
CLIP NUT ST4.8
$1.36¢681
1
#28
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#29
6060-150700
TIE BAND, BATTERY
$6.24¢3 119
1
#30
6AQV-161000-2000
FLASHER
$37.49¢18 744
1
#31
6KJ0-150600
SENSOR, ROLL OVER
$37.49¢18 744
1
#32
6AQV-150310-1000
POSITIVE CABLE, STARTER MOTOR
$34.99¢17 494
1
