BRAKE SYSTEM BOSCH ABS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

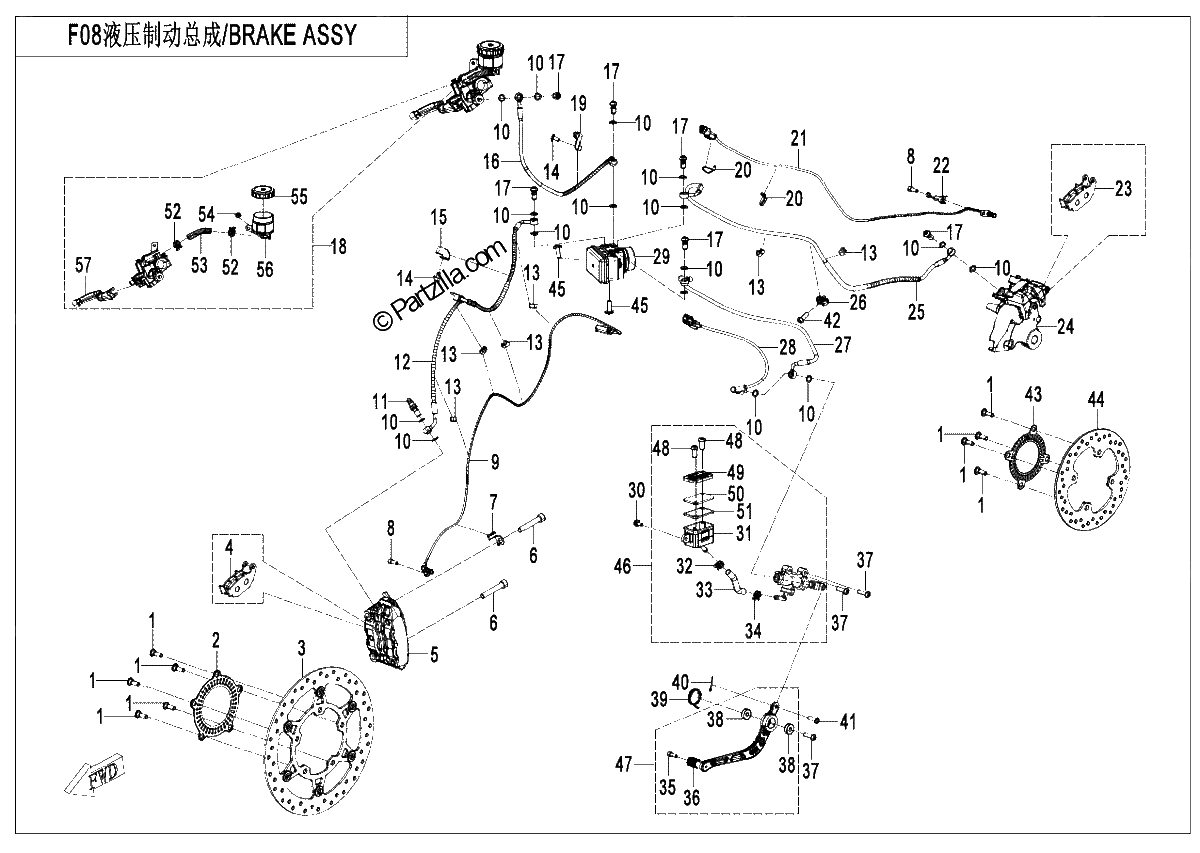

Diagrama de BRAKE SYSTEM BOSCH ABS

Repuestos

#1
6KJ0-080005
BOLT, FRONT BRAKE DISC
$1.25¢627
1
#2
6AQV-080002-1000
FRONT RACK
$195.49¢97 744
1
#3
6AQV-080001-1000-M1
FRONT BRAKE DISC
$195.49¢97 744
1
#4
6AQV-0812A1
FRONT BRAKE PAD
$177.09¢88 544
1
#5
6AQV-081210-1001-M1
FRONT BRAKE CALIPER
$689.99¢344 994
1
#6
30102-102060810
SCREW M10X60X1.25
$2.29¢1 144
1
#7
6AQV-081002-1000
WIRE CLIP, FRONT SPEED SENSOR
$4.59¢2 294
1
#8
30102-060016870
SCREW M6X16
$1.25¢627
1
#9
6AQV-080004-1000-M1
BRAKE HOSE
$80.49¢40 244
1
#10
6AQV-080102-1000-M1
WASHER
$1.25¢627
1
#11
6AQV-080007-1000-M1
BOLT
$10.34¢5 169
1
#12
6AQV-081600-1001
FRONT BRAKE FLUID INLET HOSE
$114.99¢57 494
1
#13
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.29¢1 144
1
#14
6WWV-046702-5000
INNER HEX SCREW M6X12
$1.25¢627
1
#15
6AQV-081601-1002
WIRE CLIP, FLUID INLET HOSE
$3.44¢1 719
1
#16
6AQV-081500-1000
FLUID OUTLET HOSE, FRONT BRAKE
$68.99¢34 494
1
#17
6AQV-080008-1000-M1
BOLT
$4.59¢2 294
1
#18
6AQV-081100-1000-M1
FRONT BRAKE MASTER CYLINDER ASSEMBLY
$229.99¢114 994
1
#19
6AQV-081501-1002
WIRE CLIP, FLUID OUTLET HOSE
$3.44¢1 719
1
#20
8010-150003
TIE BAND 5X250
$1.25¢627
1
#21
6L30-080020
SPEED SENSOR, FRONT WHEEL
$80.49¢40 244
1
#22
6AQV-081003-1000
WIRE CLIP, REAR SPEED SENSOR
$5.74¢2 869
1
#23
6KM0-0911A0
REAR BRAKE PAD COMP
$42.54¢21 269
1
#24
6AQV-081710-1001-M1
REAR BRAKE CALIPER
$206.99¢103 494
1
#25
6AQV-081900-1000
FLUID INLET HOSE, REAR BRAKE
$56.91¢28 457
1
#26
6L30-080006
WIRE CLIP 2, BRAKE FLUID HOSE
$3.44¢1 719
1
#27
6AQV-081800-1001
REAR BRAKE FLUID OUTLET HOSE
$68.99¢34 494
1
#28
6GUV-081070-5000-M1
REAR BRAKE LIGHT SWITCH
$80.49¢40 244
1
#29
6AQV-081300-3001-M1
ABS CONTROLLER
No Disponible
1
#30
30006-060016810
BOLT M6X16
$1.25¢627
1
#31
6AQV-081410-1000-21
RESERVOIR TANK
$28.74¢14 369
1
#32
6KM0-091215-20000
HOSE CLIP 1
$2.29¢1 144
1
#33
6AQV-081410-1000-20
RESERVOIR TANK HOSE
$6.89¢3 444
1
#34
A000-080213-2000
CLIP
$8.04¢4 019
1
#35
30102-060016810
SCREW M6X16
$1.25¢627
1
#36
6AQV-080301-1000
SUPPORTER (SILVER)
$16.09¢8 044
1
#37
30121-080025160
SCREW M8X25
$2.29¢1 144
1
#38
30400-00880
BEARING 8X22X7
$5.74¢2 869
1
#39
6AQV-080400-1000
SPRING
$6.89¢3 444
1
#40
30903-0201610
COTTER PIN. 2.0X16
$2.29¢1 144
1
#41
30904-0602240
PIN SHAFT
$2.29¢1 144
1
#42
6100-120005
INNER HEX SCREW M6X8
$1.25¢627
1
#43
6NTG-080009
REAR GEAR RING
$17.24¢8 619
1
#44
6AQV-080006-1000
REAR BRAKE DISC
$57.49¢28 744
1
#45
6WWV-046902-5000
INNER HEX SCREW M6X20
$1.25¢627
1
#46
6AQV-081410-1002-M1
MASTER CYLINDER, REAR BRAKE
$103.49¢51 744
1
#47
6AQV-080300-1000-0VR00
REAR BRAKE PEDAL Assembly, MERCURY SILVER
$80.49¢40 244
1
#48
6AQV-081410-1000-25
SCREW, RESERVOIR TANK COVER
$1.25¢627
1
#49
6AQV-081410-1000-24
RESERVOIR TANK COVER
$8.04¢4 019
1
#50
6AQV-081410-1000-23
BACKING PLATE, RESERVOIR TANK
$2.29¢1 144
1
#51
6AQV-081410-1000-22
GASKET, RESERVOIR TANK
$2.29¢1 144
1
#52
6AQV-081110-1000-46
CLAMP
$2.29¢1 144
1
#53
6AQV-081110-1000-45
FLUID HOSE
$5.74¢2 869
1
#54
6AQV-081110-1000-35
BOLT RESERVOIR TANK
$1.25¢627
1
#55
6AQV-081110-1001-54
CAP, FLUID RESERVOIR
$10.34¢5 169
1
#56
6AQV-081110-1000-53
RESERVOIR TANK
$34.49¢17 244
1
#57
6AQV-081110-1000-47
BRAKE LEVER
$45.99¢22 994
1
