FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

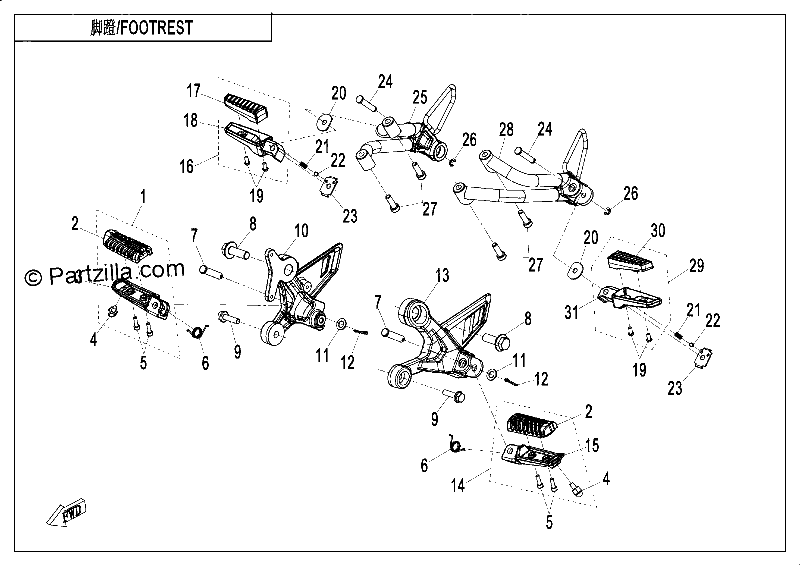

Diagrama de FOOTREST

Repuestos

#2
6KMV-140170-8100
FOOTREST RUBBER
$6.24¢3 119
1
#3
6KWV-140141-1000
RIGHT HAND FRONT FOOTREST SEAT
$16.24¢8 119
1
#4
6KM0-130123
LIMIT BOLT (SILVER)
$3.74¢1 869
1
#5
30105-050014410
SCREW M5X14 (SILVER)
$1.36¢681
1
#6
A000-140103-20000
SPRING
$2.49¢1 244
1
#7
6WWV-140141-5000
PIN SHAFT
$2.49¢1 244
1
#8
0800-014009-00002
BOLT
$3.74¢1 869
1
#9
30006-080030810
BOLT M8X30
$1.36¢681
1
#11
30300-100112
WASHER M10
$1.36¢681
1
#12
30903-0322210
COTTER PIN, 3.2X22
$1.36¢681
1
#15
6KWV-140131-1000
LEFT HAND FRONT FOOTREST
$16.24¢8 119
1
#17
6KJ0-140142
RUBBER ASSEMBLY,FRONT STEP, RIGHT HAND
$12.49¢6 244
1
#19
30105-050014470
SCREW M5X14 (BLACK)
$1.36¢681
1
#20
A000-140106
LOCATING GASKET 2
$2.49¢1 244
1
#21
5190-037813
SPRING
$2.49¢1 244
1
#22
5190-037814
STEEL BALL
$1.24¢619
1
#23
A000-140104
LOCATING GASKET 1
$3.74¢1 869
1
#24
A000-140142
PIN SHAFT 8
$3.74¢1 869
1
#26
30802-00605
CIRCLIP
$1.36¢681
1
#27
30102-080025810
SCREW, M8X25
$1.36¢681
1
#30
6KJ0-140132
RUBBER, LEFT HAND FOOT PEDAL
$8.74¢4 369
1
