FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

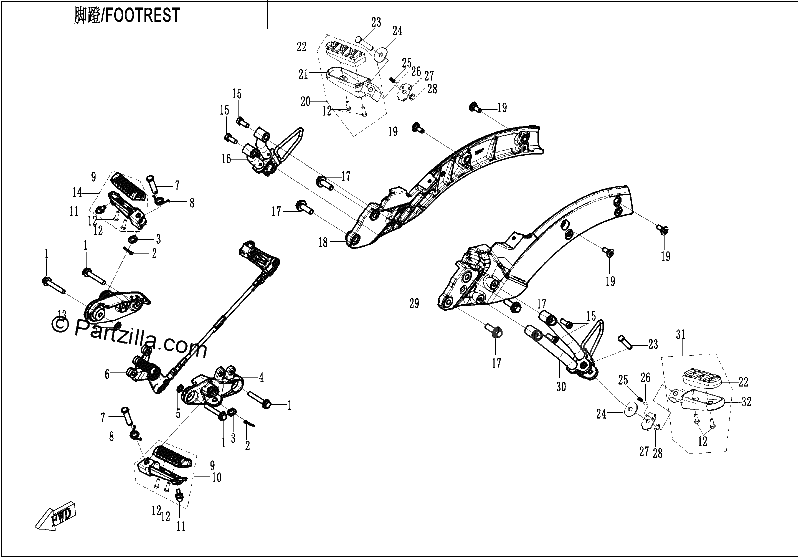

Diagrama de FOOTREST

Repuestos

#1
30006-080050870
BOLT
$2.29¢1 144
1
#2
30903-0322210
COTTER PIN, 3.2X22
$1.25¢627
1
#3
30300-100112
WASHER M10
$1.25¢627
1
#4
6AQV-140600-7101
LEFT HAND FRONT FOOTREST BRACKET
$103.49¢51 744
1
#5
0180-334004
GASKET
$3.44¢1 719
1
#6
6AQV-141000-7100
GEARSHIFT LEVER CONNECTING ASSEMBLY (INCLUDES PEDAL)
$160.99¢80 494
1
#7
6WWV-140141-5000
PIN SHAFT
$2.29¢1 144
1
#8
A000-140103-20000
SPRING
$2.29¢1 144
1
#9
6KMV-140170-8100
FOOTREST RUBBER
$5.74¢2 869
1
#11
6GU-140202-6000
LIMIT BOLT (BLACK)
$2.29¢1 144
1
#12
30105-050014470
SCREW M5X14 (BLACK)
$1.25¢627
1
#13
6AQV-140700-7100
RIGHT HAND FRONT FOOTREST BRACKET
$103.49¢51 744
1
#15
30102-080020870
INNER HEX SCREW M8X20
$1.25¢627
1
#17
30006-102030810
BOLT M10X1.25X30
$2.29¢1 144
1
#19
5HY0-220113
BOLT M8X20
$1.60¢799
1
#22
6GU-140080-6000
RUBBER, REAR FOOTREST BOARD
$10.34¢5 169
1
#23
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#24
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#25
5190-037813
SPRING
$2.29¢1 144
1
#26
5190-037814
STEEL BALL
$1.14¢569
1
#27
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#28
30802-00605
CIRCLIP
$1.25¢627
1
