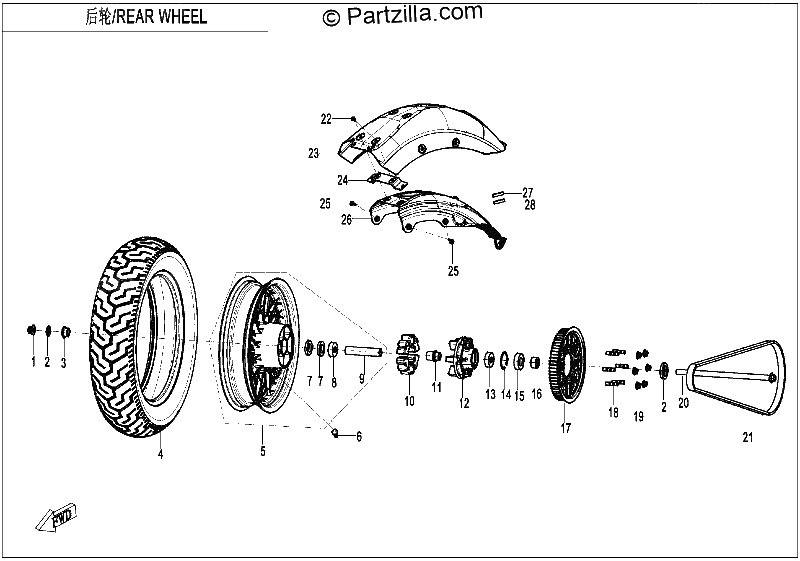

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
NUT M16X1.5
$4.99¢2 494
#2
BRAKE REAR WHEEL SHAFT PLAIN WASHER
$1.36¢681
#3
RIGHT HAND SHAFT BUSHING, REAR WHEEL
$7.49¢3 744
#4
TYRE
No Disponible
#6
VALVE, INFLATION
$6.24¢3 119
#7
BEARING
$12.49¢6 244
#8
OIL SEAL FB27X47X7
$6.24¢3 119
#9
REAR RIM MIDDLE SPACER
$11.24¢5 619
#10
DRIVEN PULLEY SEAT BUFFER
$3.74¢1 869
#11
DRIVEN PULLEY SEAT SLEEVE
$6.24¢3 119
#12
DRIVEN PULLEY SEAT
$374.99¢187 494
#13
BEARING 6205 2RS
$22.49¢11 244
#14
CIRCLIP FOR HOLE 52
$3.74¢1 869
#15
OIL SEAL FB35X52X8
$3.74¢1 869
#16
LEFT HAND SHAFT BUSHING, REAR WHEEL
$7.49¢3 744
#18
DRIVEN PULLEY SEAT STUD
$3.74¢1 869
#19
NUT M10X1.25
$1.36¢681
#20
REAR WHEEL SHAFT
$49.99¢24 994
#21
SYNCHRONOUS BELT
$412.49¢206 244
#22
BOLT M6X16
$1.36¢681
#24
SEAT SUPPORT
$7.49¢3 744
#25
BOLT M8X20
$1.74¢869
#26
REAR FENDER INNER PLATE ASSEMBLY
$337.49¢168 744
#27
FENDER RUBBER 1
$1.36¢681
#28
FENDER RUBBER 2
$1.36¢681
