REAR BRAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

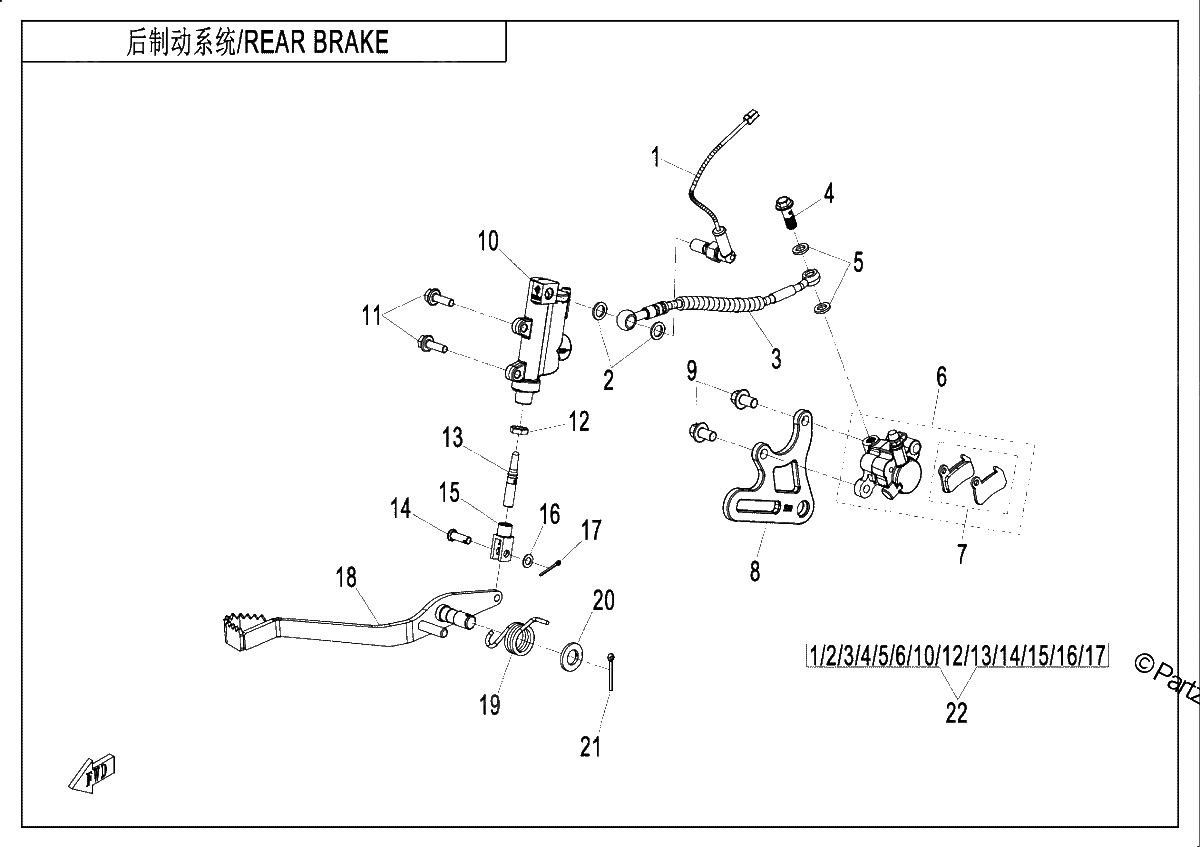

Diagrama de REAR BRAKE

Repuestos

#1
ED2V-091000-3000-20
PRESSURE SWITCH
$22.99¢11 494
1
#2
ED2V-091000-3000-21
WASHER
$1.25¢627
1
#3
ED2V-091030-3000-M1
REAR BRAKE HOSE
$14.94¢7 469
1
#4
ED2V-081000-1000-23
BOLT
$3.44¢1 719
1
#5
ED2V-081000-1000-24
WASHER
$1.25¢627
1
#6
ED2V-091020-3000-M1
REAR FOOT BRAKE LOWER PUMP ASSEMBLY
$68.99¢34 494
1
#7
ED2V-0810A0
BRAKE PAD ASSEMBLY
$21.84¢10 919
1
#8
ED2V-090002-1000
MOUNTING BRACKET
$16.09¢8 044
1
#9
30006-080014810
BOLT M8X14
$1.25¢627
1
#10
ED2V-091010-3000-M1
REAR FOOT BRAKE UPPER PUMP ASSEMBLY
$55.19¢27 594
1
#11
30006-060020870
BOLT M6x20
$2.29¢1 144
1
#12
ED2V-091000-3000-24
NUT
$1.25¢627
1
#13
ED2V-091000-3000-23
SCREW
$4.59¢2 294
1
#14
ED2V-091000-3000-27
FIXING PIN
$2.29¢1 144
1
#15
ED2V-091000-3000-25
CONNECTING BLOCK
No Disponible
1
#16
ED2V-091000-3000-28
WASHER
$1.25¢627
1
#17
ED2V-091000-3000-26
COTTER PIN
$1.25¢627
1
#18
ED2V-093000-3002
BRAKE PEDAL
$19.54¢9 769
1
#19
ED2V-092020-3001
REAR BRAKE SPRING
$2.29¢1 144
1
#20
30306-120112
WASHER 12
$1.25¢627
1
#21
30903-0322210
COTTER PIN, 3.2X22
$1.25¢627
1
#22
ED2V-091000-3001-M1
REAR HYDRAULIC BRAKE Assembly
$160.99¢80 494
1
