REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

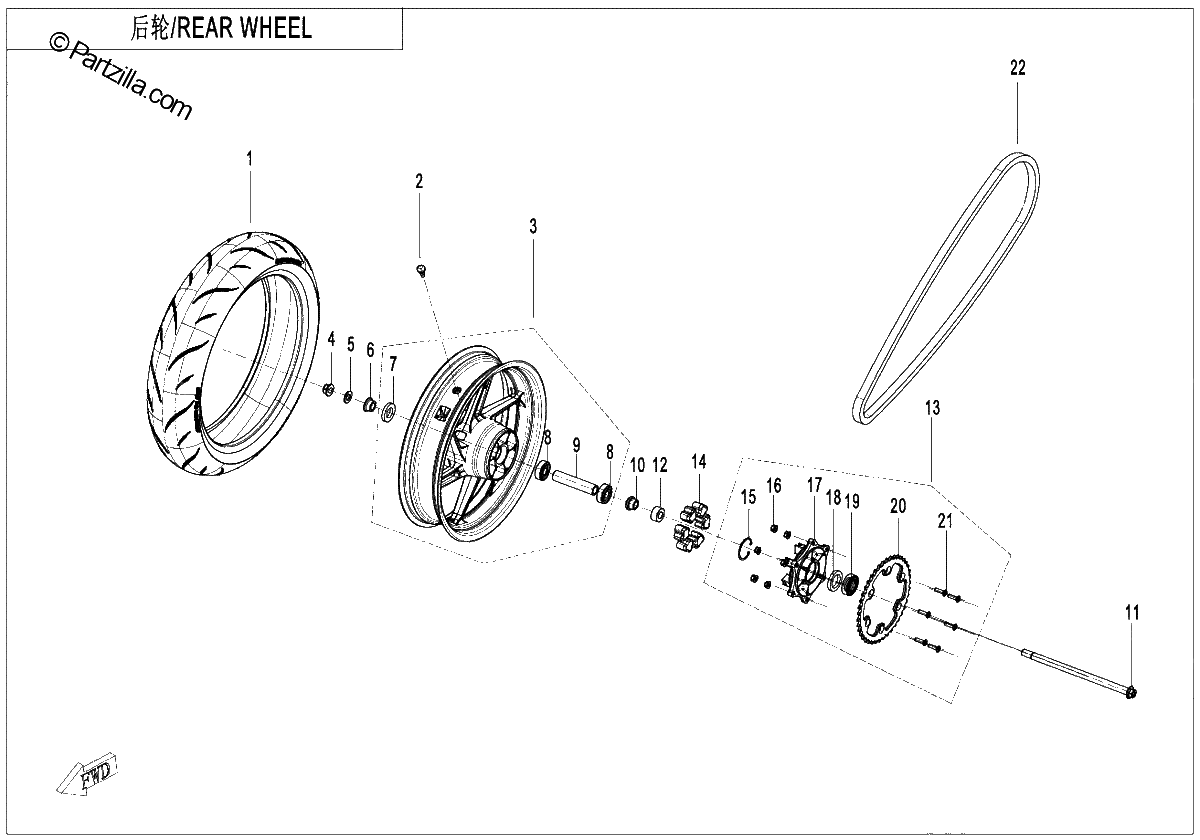

Diagrama de REAR WHEEL

Repuestos

#1
30705SH-177600
TIRE
$249.99¢124 994
1
#2
5190-070030-1000
VALVE, INFLATION
$6.24¢3 119
1
#3
6AQV-110200-1001-M1-0BV00
REAR RIM Assembly, MIDNIGHT BLACK
$462.49¢231 244
1
#4
6AQV-060006-1000-M1
NUT M16X1.5
$4.99¢2 494
1
#5
6AQV-110006-1000
WASHER, REAR WHEEL AXLE
$2.49¢1 244
1
#6
6AQV-110004-1000
RIGHT HAND SHAFT BUSHING, REAR WHEEL
$7.49¢3 744
1
#7
30500-027800N
OIL SEAL FB27X47X7
$6.24¢3 119
1
#8
30400-01784
BEARING
$12.49¢6 244
1
#9
6AQV-110202-1000-M1
MIDDLE SPACER, REAR RIM
$9.99¢4 994
1
#10
6AQV-110005-1000
SHAFT BUSHING, SPROCKET SEAT
$8.74¢4 369
1
#11
6AQV-110007-1000
SHAFT, REAR WHEEL
$124.99¢62 494
1
#12
6AQV-110003-1000
LEFT HAND SHAFT BUSHING, REAR WHEEL
$7.49¢3 744
1
#13
6AQV-110300-1003
SPROCKET SEAT ASSEMBLY
$224.99¢112 494
1
#14
6AQV-110011-1000
DAMPER, SPROCKET
$4.99¢2 494
1
#15
30800-05205
CIRCLIP FOR HOLE 52
$3.74¢1 869
1
#16
30204-080810
NUT M8
$1.36¢681
1
#17
6AQV-110301-1000
SPROCKET SEAT
$224.99¢112 494
1
#18
6AQV-110300-1000-21
OIL SEAL
$4.99¢2 494
1
#19
6AQV-110300-1000-20
BEARING
$49.99¢24 994
1
#20
6AQV-110002-1001
REAR SPROCKET
$99.99¢49 994
1
#21
6AQV-110300-1000-22
BOLT
$3.74¢1 869
1
#22
3120935
CHAIN DH 520FX14R
$149.99¢74 994
1
