REAR AXLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

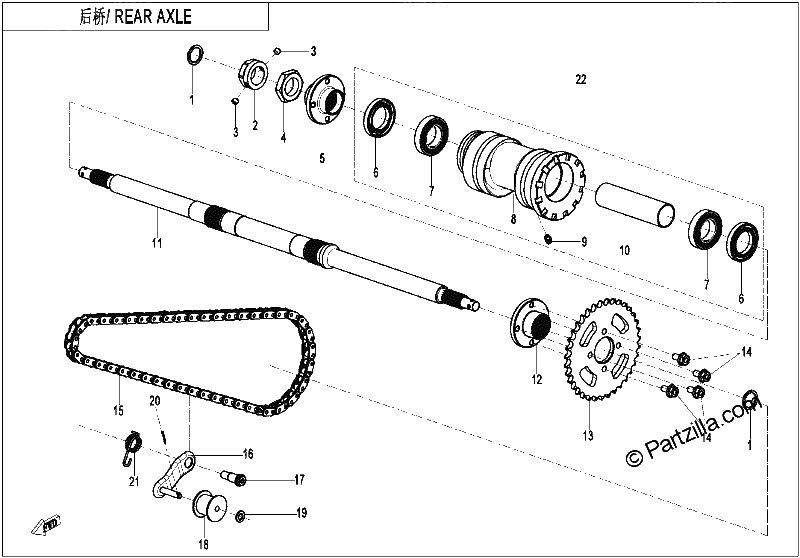

Diagrama de REAR AXLE

Repuestos

#1
9RHV-330108-1000
LIMIT WASHER
$3.74¢1 869
1
#2
9RHV-330104-1000
LOCK NUT 2
$11.24¢5 619
1
#3
30123-050006810
SCREW
$2.49¢1 244
1
#4
9RHV-330102-1000
LOCK NUT 1
$9.99¢4 994
1
#5
9RHV-330105-1000
BRAKE DISC BRACKET
$37.49¢18 744
1
#6
30500-035800N
OIL SEAL
$6.24¢3 119
1
#7
9RHV-330150-1000-21
DEEP GROOVE BALL BEARING 6006 2RS/P63
$22.49¢11 244
1
#8
9RHV-330106-1000
ECCENTRIC SHAFT
$174.99¢87 494
1
#9
9RHV-330150-1000-20
OIL NOZZLE
$4.99¢2 494
1
#10
9RHV-330101-1000
INNER SPACER
$49.99¢24 994
1
#11
9RHV-330103-1000
CORE SHAFT, REAR GEAR CASE
$262.49¢131 244
1
#12
9RHV-330107-1000
SPROCKET BRACKET
$37.49¢18 744
1
#13
9RHV-332001-1200
SPROCKET, 43T
No Disponible
1
#13
9RHV-332001-1000
SPROCKET, 38T
$33.74¢16 869
1
#14
30023-080016810
BOLT
$1.36¢681
1
#15
3120948
CHAIN SFR 428H 90L
No Disponible
1
#15
3120938
DRIVE CHAIN
$58.74¢29 369
1
#16
9RHV-332110-1000
TENSIONER BRACKET
$19.99¢9 994
1
#17
A000-030006
BOLT, SIDE STAND
$3.74¢1 869
1
#18
HH4V-332101-1000
TENSIONER
$7.49¢3 744
1
#19
30306-080112
WASHER
$1.36¢681
1
#20
30903-0201610
COTTER PIN. 2.0X16
$2.49¢1 244
1
#21
9RHV-332102-1000
TENSIONER SPRING
$6.24¢3 119
1
#22
9RHV-330150-1000
ECCENTRIC SLEEVE
$224.99¢112 494
1
