MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

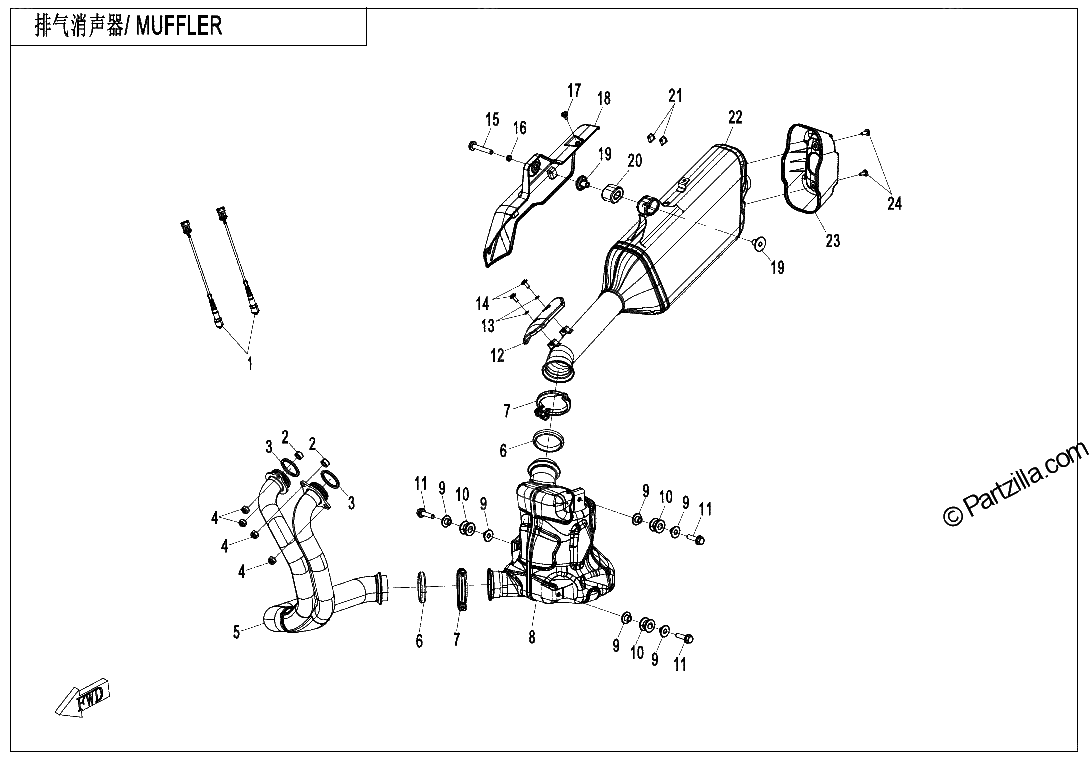

Diagrama de MUFFLER

Repuestos

#1
0HU0-176000
OXYGEN SENSOR
$218.49¢109 244
1
#2
6WWV-020001-5000
BUSHING, EXHAUST PORT
$4.59¢2 294
1
#3
6WWV-020004-5000
SEAL GASKET, EXHAUST
$4.59¢2 294
1
#4
6L30-020005
LOCK NUT
$8.04¢4 019
1
#5
6WWV-021100-5001
EXHAUST PIPE ASSEMBLY
$574.99¢287 494
1
#6
6L30-021001
SEAL SLEEVE 1, GRAPHITE
$11.49¢5 744
1
#7
6L30-021010
CALMP 1
$21.84¢10 919
1
#8
6WWV-021200-5002
FRONT MUFFLER BODY ASSEMBLY
$804.99¢402 494
1
#9
6WWV-020002-5001
BUSHING, MUFFLER BODY
$2.29¢1 144
1
#10
6WWV-020003-5000
RUBBER SLEEVE, MUFFLER BODY
$2.29¢1 144
1
#11
30006-080030810
BOLT M8X30
$1.25¢627
1
#12
6WWV-021003-5000
REAR COVER, EXHAUST PIPE
$25.29¢12 644
1
#13
30303-050042
SPRING WASHER (SPS)
$2.29¢1 144
1
#14
6NTA-040202
INNER HEX SCREW M5X12
$1.25¢627
1
#15
6L30-020003
INNER HEX SCREW M8X52
$11.49¢5 744
1
#16
6WWV-021004-5000
BUSHING, GUARD
$4.59¢2 294
1
#17
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#18
6WWV-021001-5000
GUARD, MUFFLER
$17.24¢8 619
1
#19
6L30-020006
T TYPE BUSHING
$17.24¢8 619
1
#20
6L30-020001
DAMPING SLEEVE, MUFFLER
$5.74¢2 869
1
#21
6GU-021005-6000
GUARD RUBBER SLEEVE
$3.44¢1 719
1
#22
6WWV-021300-5001
REAR MUFFLER BODY
$689.99¢344 994
1
#23
6WWV-021002-5000
REAR COVER, MUFFLER
$14.94¢7 469
1
#24
6WWV-047102-5000
INNER HEX SCREW M5X14
$1.25¢627
1
