FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

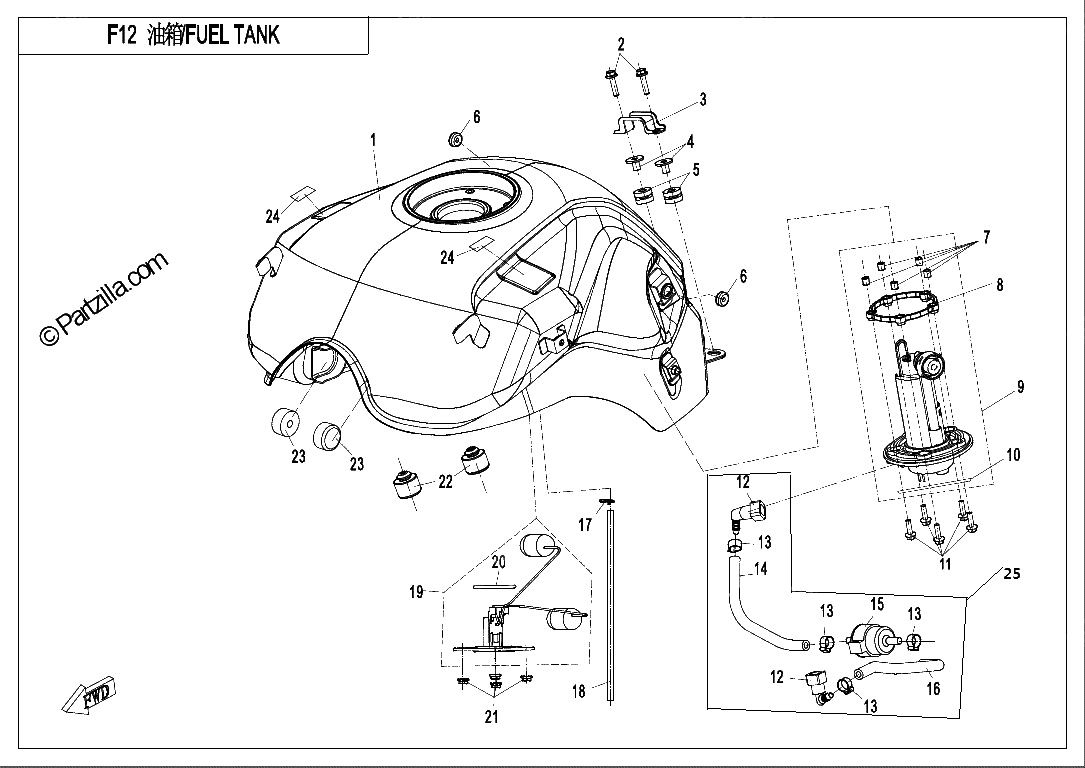

Diagrama de FUEL TANK

Repuestos

#2
30006-060025810
BOLT M6X25
$3.74¢1 869
1
#3
A000-120005
HOOK
$2.49¢1 244
1
#4
5020-031002
RUBBER COLLAR
$1.36¢681
1
#5
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.36¢681
1
#6
A000-040302
RUBBER DAMPER
$3.74¢1 869
1
#7
6KJ0-150903
BUSHING
$2.49¢1 244
1
#8
6KJ0-150902
SEAL GASKET
$6.24¢3 119
1
#9
6KJV-150900-8001
FUEL PUMP ASSEMBLY
$187.49¢93 744
1
#10
6KJ0-150901
LOCK PAD, TOP COVER
$8.74¢4 369
1
#1-1
6NTV-121000-4000-0VE00
FUEL TANK, NEBULA WHITE
$874.99¢437 494
1
#11
30006-050020810
BOLT M5X20
$1.36¢681
1
#1-2
6NTV-121000-4000-0EK00
FUEL TANK, ATHENS BLUE
$874.99¢437 494
1
#12
6090-120210
QUICK JOINT
$22.49¢11 244
1
#13
6070-120400
CLAMP D14.5
$2.49¢1 244
1
#14
A010-120210-10000
HIGH PRESSURE FUEL HOSE I
$24.99¢12 494
1
#15
6090-120220
FUEL FILTER, INLINE (WITH RUBBER COLLAR)
$28.74¢14 369
1
#16
A000-120220-10000
HIGH PRESSURE FUEL HOSE 2
$19.99¢9 994
1
#17
30601-111010
CLAMP f10.5A
$1.36¢681
1
#18
9CSV-360005-6000
BREATHER HOSE 2, FUEL TANK
$6.24¢3 119
1
#19
6NQV-170200-2801
FUEL LEVEL SENSOR
$49.99¢24 994
1
#20
A000-170201
SEAL RING
$2.49¢1 244
1
#21
30204-060810
NUT M6
$1.36¢681
1
#22
A000-120001
RUBBER SUPPORT
$3.74¢1 869
1
#23
A000-120006
CUSHION
$3.74¢1 869
1
#24
6NT1-041510
BUCKLE COMP
$3.74¢1 869
1
#25
A010-120200
FUEL HOSE Assembly
$87.49¢43 744
1
