MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

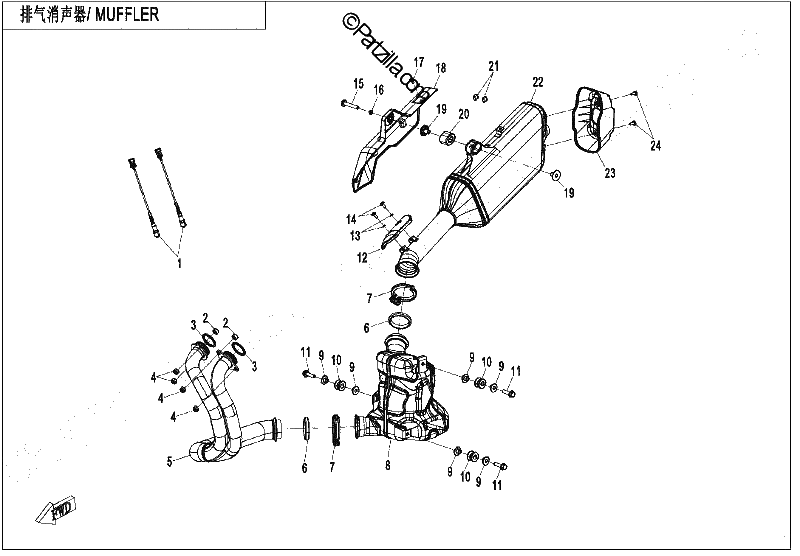

Diagrama de MUFFLER

Repuestos

#1
0HU0-176000
OXYGEN SENSOR
$237.49¢118 744
1
#2
6WWV-020001-5000
BUSHING, EXHAUST PORT
$4.99¢2 494
1
#3
6WWV-020004-5000
SEAL GASKET, EXHAUST
$4.99¢2 494
1
#4
K-51010086100
SELF LOCKING NUT M8 CU
$11.24¢5 619
1
#5
6WWV-021100-5001
EXHAUST PIPE ASSEMBLY
$624.99¢312 494
1
#6
6L30-021001
SEAL SLEEVE 1, GRAPHITE
$12.49¢6 244
1
#7
C63605058100
CLAMP
$29.99¢14 994
1
#8
6WWV-021200-5002
FRONT MUFFLER BODY ASSEMBLY
$874.99¢437 494
1
#9
6WWV-020002-5001
BUSHING, MUFFLER BODY
$2.49¢1 244
1
#10
6WWV-020003-5000
RUBBER SLEEVE, MUFFLER BODY
$2.49¢1 244
1
#11
30006-080030810
BOLT M8X30
$1.36¢681
1
#12
6WWV-021003-5000
REAR COVER, EXHAUST PIPE
$27.49¢13 744
1
#13
30303-050000
WASHER
No Disponible
1
#14
6NTA-040202
INNER HEX SCREW M5X12
$1.36¢681
1
#15
6L30-020003
INNER HEX SCREW M8X52
$12.49¢6 244
1
#16
6WWV-021004-5000
BUSHING, GUARD
$4.99¢2 494
1
#17
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#18
6WWV-021001-5000
GUARD, MUFFLER
$18.74¢9 369
1
#19
C90705169000
MUFFLER T SHAPE BUSHING
$18.74¢9 369
1
#20
6L30-020001
DAMPING SLEEVE, MUFFLER
$6.24¢3 119
1
#21
6GU-021005-6000
GUARD RUBBER SLEEVE
$3.74¢1 869
1
#22
6WWV-021300-5001
REAR MUFFLER BODY
$749.99¢374 994
1
#23
6WWV-021002-5000
REAR COVER, MUFFLER
$16.24¢8 119
1
#24
6WWV-047102-5000
INNER HEX SCREW M5X14
$1.36¢681
1
