MAIN FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

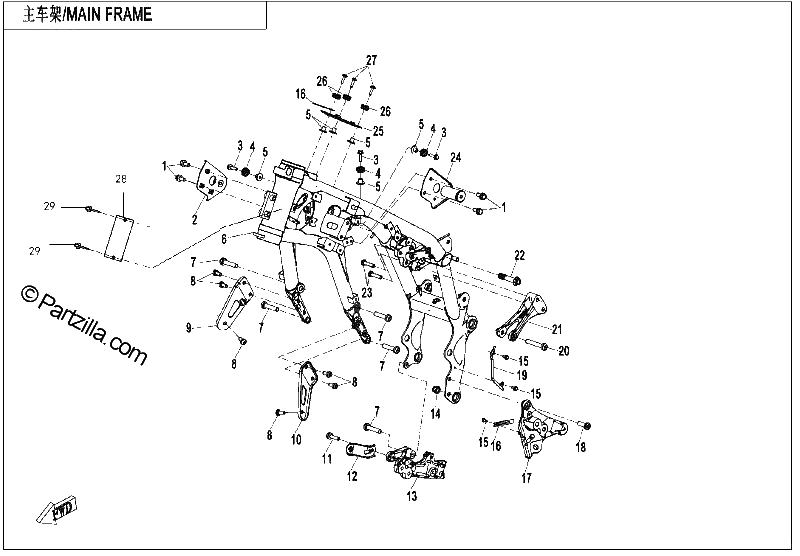

Diagrama de MAIN FRAME

Repuestos

#1
30006-080016810
BOLT M8X16
$1.36¢681
1
#2
6WWV-030040-5000
RIGHT HAND MIDDLE BRACKET, FRONT BUMPER
$31.24¢15 619
1
#3
30006-060022810
BOLT M6X22
$1.36¢681
1
#4
9060-180029
RUBBER TUBE, RADIATOR
$2.49¢1 244
1
#5
6KM-181001-8001
DAMPING RUBBER MAT
$3.74¢1 869
1
#7
6WWV-030011-5000
INNER HEX SCREW M10X45
$2.49¢1 244
1
#8
6WWV-030013-5000
INNER HEX SCREW M8X16
$2.49¢1 244
1
#9
6WWV-030060-5000
RIGHT HAND REAR BRACKET, BUMPER
$17.49¢8 744
1
#10
6WWV-030050-5000
LEFT HAND REAR BRACKET, BUMPER
$17.49¢8 744
1
#11
30006-080028810
BOLT M8X28
$1.36¢681
1
#12
6WWV-000120-5000
RIGHT HAND BRACKET ASSEMBLY, GUARD
$12.49¢6 244
1
#13
6WWV-030090-5000
RIGHT HAND BRACKET, MIDDLE SUPPORTER
$112.49¢56 244
1
#14
K-54310086100
SELF LOCKING NUT M10 CU WS=14
$6.25¢3 125
1
#15
30006-050012810
BOLT M5X12
$6.24¢3 119
1
#16
0180-014010
WIRE CLAMP
No Disponible
1
#17
6WWV-030080-5000
LEFT HAND BRACKET, MIDDLE SUPPORTER
$112.49¢56 244
1
#18
6WWV-030017-5000
INNER HEX SCREW M10X30
$2.49¢1 244
1
#19
6WWV-030003-5000
BRACKET, SIDE STAND SWITCH CABLE
$7.49¢3 744
1
#20
6L30-030091
BOLT M10X60
$4.99¢2 494
1
#21
6WWV-030009-5000
ENGINE HANGING BRACKET
$87.49¢43 744
1
#22
6WWV-030018-5000
BOLT M12X60
$4.99¢2 494
1
#23
30102-080050110
INNER HEX SCREW M8X50
No Disponible
1
#24
6WWV-030030-5000
LEFT HAND MIDDLE BRACKET, FRONT BUMPER
$32.49¢16 244
1
#25
6WWV-030001-5000
BRACKET, 6D SENSOR
$9.99¢4 994
1
#26
6WWV-030019-5000
RUBBER BUSHING
$1.36¢681
1
#27
6WWV-046901-5000
INNER HEX SCREW M6X20
No Disponible
1
#28
6WWV-190012-5300
VIN PLATE
No Disponible
1
#29
30902-0401320
BLIND RIVET
$1.36¢681
1
