FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

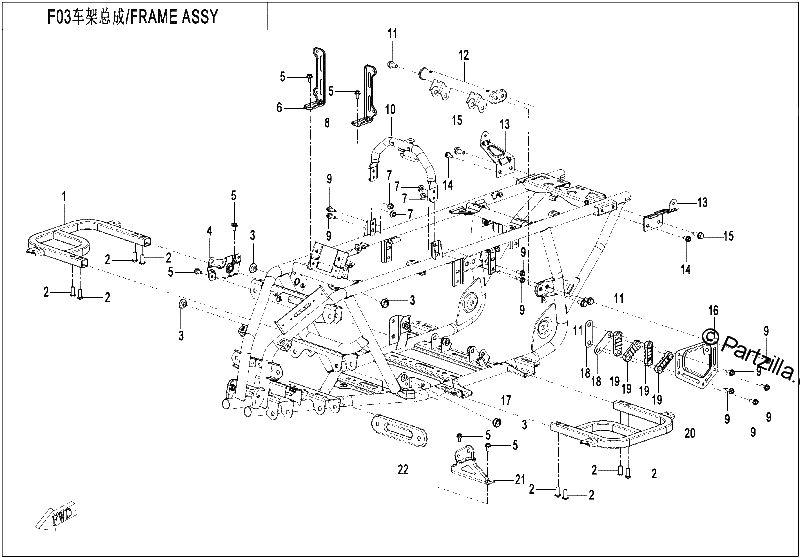

Diagrama de FRAME

Repuestos

#1
HH4V-030400-1000
RIGHT HAND FOOTREST ASSEMBLY ELECTROPHORESIS BLACK
$28.74¢14 369
1
#2
30121-080020870
SCREW M8X20
No Disponible
1
#3
5BY0-040010
RUBBER SLEEVE
$2.29¢1 144
1
#4
HH4V-030002-1000
BRACKET, MASTER CYLINDER
No Disponible
1
#5
30006-060012870
BOLT M6X12
$0.69¢345
1
#6
HH4V-030040-1000
RIGHT HAND BRACKET, MCU
$13.79¢6 894
1
#7
30204-060810
NUT M6
$1.25¢627
1
#8
HH4V-030030-1000
LEFT HAND BRACKET, MCU
$13.79¢6 894
1
#9
30006-060016810
BOLT M6X16
$1.25¢627
1
#10
HH4V-030100-1000
FRONT SUPPORTER, SEAT
$34.49¢17 244
1
#11
30006-080016810
BOLT M8X16
$1.25¢627
1
#12
HH4V-030200-1000
UPPER BRACKET, MOTOR
$45.99¢22 994
1
#13
HH4V-030010-1000
BRACKET, REAR FENDER
$16.09¢8 044
1
#14
30006-060012870
BOLT M6X12
$0.69¢345
1
#15
30006-080020810
BOLT M8X20
$1.25¢627
1
#16
HH4V-030020-1000
BRACKET, HIGH TENSION WIRE
$16.09¢8 044
1
#17
HH4V-031000-1004-01
FRAME ASSEMBLY
No Disponible
1
#18
HH4V-030050-1000
PRESS PLATE, HIGH TENSION WIRE
$17.24¢8 619
1
#19
HH4V-042043-1000
PRESS BLOCK, HIGH TENSION CABLE
$3.44¢1 719
1
#20
HH4V-030300-1000
LEFT HAND FOOTREST ASSEMBLY ELECTROPHORESIS BLACK
$28.74¢14 369
1
#21
HH4V-030060-1000
BRACKET, HYDRAULIC VALVE
No Disponible
1
#22
HH4V-030001-1000
BRACKET, FRONT SWING ARM
$17.24¢8 619
1
