BRAKE SYSTEM BOSCH ABS 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

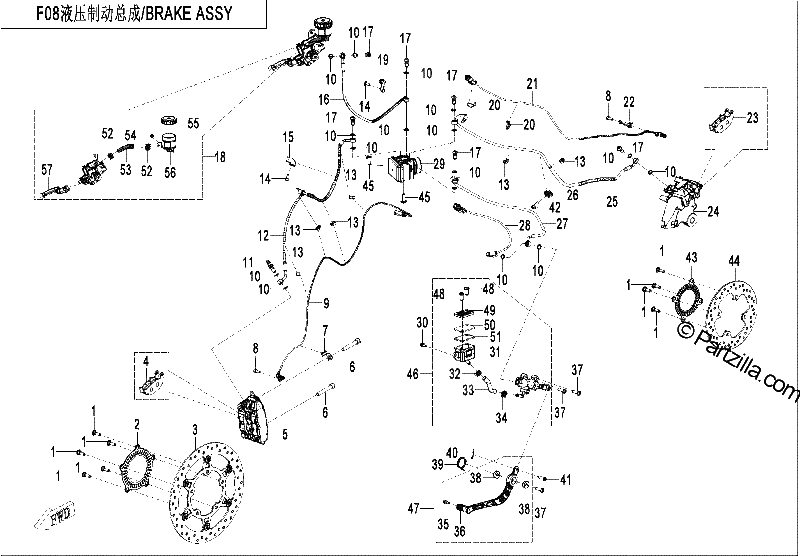

Diagrama de BRAKE SYSTEM BOSCH ABS 2

Repuestos

#1
6KJ0-080005
BOLT, FRONT BRAKE DISC
$1.36¢681
1
#2
6AQV-080002-1000
FRONT RACK
$212.49¢106 244
1
#3
6AQV-080001-1000-M1
FRONT BRAKE DISC
$212.49¢106 244
1
#4
6AQV-0812A1
FRONT BRAKE PAD
$192.49¢96 244
1
#5
6AQV-081210-1001-M1
FRONT BRAKE CALIPER
$749.99¢374 994
1
#6
30102-102060810
SCREW M10X60X1.25
$2.49¢1 244
1
#7
6AQV-081002-1000
WIRE CLIP, FRONT SPEED SENSOR
$4.99¢2 494
1
#8
30102-060016870
SCREW M6X16
$1.36¢681
1
#9
6AQV-080004-1000-M1
BRAKE HOSE
$87.49¢43 744
1
#10
A000-080102-2000
WASHER
$2.49¢1 244
1
#11
6GU-081000-6000-22
BANJO BOLT 1
$14.99¢7 494
1
#12
6AQV-081600-1001
FRONT BRAKE FLUID INLET HOSE
$124.99¢62 494
1
#13
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.49¢1 244
1
#14
6KM-040702-8000
INNER HEX SCREW M6X12
$1.36¢681
1
#15
6AQV-081601-1002
WIRE CLIP, FLUID INLET HOSE
$3.74¢1 869
1
#16
6AQV-081500-1000
FLUID OUTLET HOSE, FRONT BRAKE
$74.99¢37 494
1
#17
6GU-081000-6000-23
BANJO BOLT2
$17.49¢8 744
1
#18
6AQV-081110-1003-M1
MASTER CYLINDER, HAND BRAKE
$299.99¢149 994
1
#19
6AQV-081501-1002
WIRE CLIP, FLUID OUTLET HOSE
$3.74¢1 869
1
#20
8010-150003
TIE BAND 5X250
$1.36¢681
1
#21
6L30-080020
SPEED SENSOR, FRONT WHEEL
$87.49¢43 744
1
#22
6AQV-081003-1000
WIRE CLIP, REAR SPEED SENSOR
$6.24¢3 119
1
#23
6KM0-0911A0
REAR BRAKE PAD COMP
$46.24¢23 119
1
#24
6AQV-081710-1001-M1
REAR BRAKE CALIPER
$224.99¢112 494
1
#25
6AQV-081900-1000
FLUID INLET HOSE, REAR BRAKE
$61.86¢30 931
1
#26
6L30-080006
WIRE CLIP 2, BRAKE FLUID HOSE
$3.74¢1 869
1
#27
6AQV-081800-1001
REAR BRAKE FLUID OUTLET HOSE
$74.99¢37 494
1
#28
6NTV-081070-9300-M1
REAR BRAKE LIGHT SWITCH
$87.49¢43 744
1
#29
6AQV-081300-1000-M1
ABS MODULE
$1249.99¢624 994
1
#30
30006-060016810
BOLT M6X16
$1.36¢681
1
#31
6AQV-081410-1000-21
RESERVOIR TANK
$31.24¢15 619
1
#32
6KM0-091215-20000
HOSE CLIP 1
$2.49¢1 244
1
#33
6AQV-081410-1000-20
RESERVOIR TANK HOSE
$7.49¢3 744
1
#34
A000-080213-2000
CLIP
$8.74¢4 369
1
#35
30102-060016810
SCREW M6X16
$1.36¢681
1
#36
6AQV-080301-1000
SUPPORTER (SILVER)
$17.49¢8 744
1
#37
30121-080025160
SCREW M8X25
$2.49¢1 244
1
#38
30400-00880
BEARING 8X22X7
$6.24¢3 119
1
#39
6AQV-080400-1000
SPRING
$7.49¢3 744
1
#40
30903-0201610
COTTER PIN. 2.0X16
$2.49¢1 244
1
#41
30904-0602240
PIN SHAFT
$2.49¢1 244
1
#42
6100-120005
INNER HEX SCREW M6X8
$1.36¢681
1
#43
6NTG-080009
REAR GEAR RING
$18.74¢9 369
1
#44
6AQV-080006-1000
REAR BRAKE DISC
$62.49¢31 244
1
#45
A000-040703
INNER HEX SCREW
$2.49¢1 244
1
#46
6AQV-081410-1002-M1
MASTER CYLINDER, REAR BRAKE
$112.49¢56 244
1
#48
6AQV-081410-1000-25
SCREW, RESERVOIR TANK COVER
$1.36¢681
1
#49
6AQV-081410-1000-24
RESERVOIR TANK COVER
$8.74¢4 369
1
#50
6AQV-081410-1000-23
BACKING PLATE, RESERVOIR TANK
$2.49¢1 244
1
#51
6AQV-081410-1000-22
GASKET, RESERVOIR TANK
$2.49¢1 244
1
#52
6AQV-081110-1000-46
CLAMP
$2.49¢1 244
1
#53
6AQV-081110-1000-45
FLUID HOSE
$6.24¢3 119
1
#54
6AQV-081110-1000-35
BOLT RESERVOIR TANK
$1.36¢681
1
#55
6AQV-081110-1001-54
CAP, FLUID RESERVOIR
$11.24¢5 619
1
#56
6AQV-081110-1000-53
RESERVOIR TANK
$37.49¢18 744
1
#57
6AQV-081110-1000-47
BRAKE LEVER
$49.99¢24 994
1
