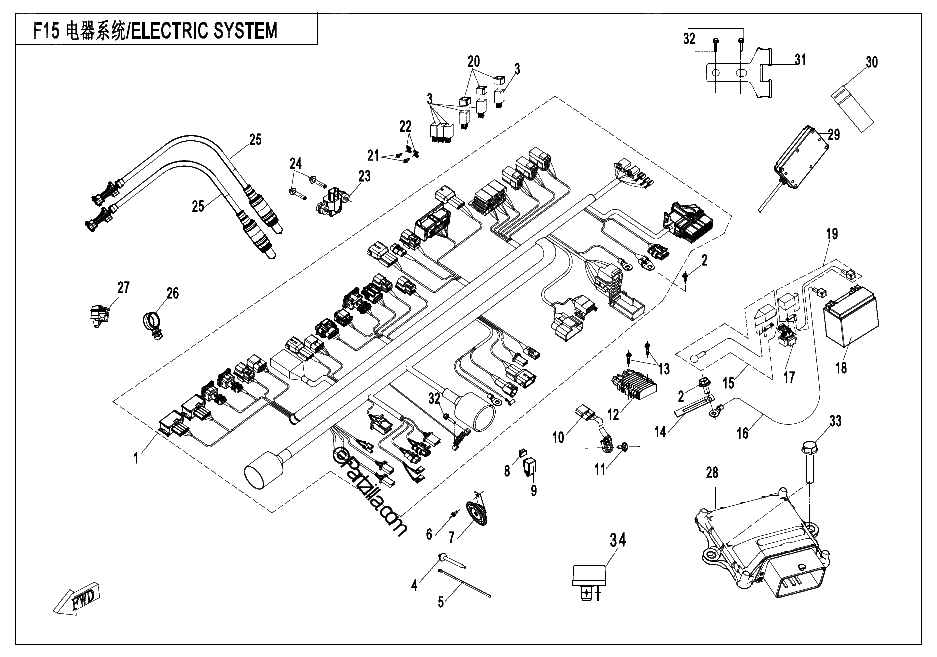

ELECTRIC SYSTEM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAIN CABLE
$804.99¢402 494
#2
BOLT M6X12
$0.69¢345
#3
AUXILIARY RELAY (GREY RELAY)
$6.89¢3 444
#4
TIE BAND
$1.25¢627
#5
TIE BAND 5X250
$1.25¢627
#6
BOLT M8X14
$1.25¢627
#7
HORN 12V
$22.99¢11 494
#8
CUSHION FLASHER
$2.29¢1 144
#9
FLASHER
$34.49¢17 244
#10
SIDE STAND SWITCH
$22.99¢11 494
#11
BOLT M6X16
$1.25¢627
#12
REGULATOR
$114.99¢57 494
#13
BOLT M6X30
$1.25¢627
#14
WIRE CLAMP
No Disponible
#15
POSITIVE WIRE, STARTER MOTOR
$20.69¢10 344
#16
NEGATIVE CABLE, STARTING MOTO
$22.99¢11 494
#17
STARTER RELAY
$45.99¢22 994
#18
BATTERY DYNAVOLT MG12 BS C
$103.49¢51 744
#19
GROUND CABLE, FRAME
$45.99¢22 994
#20
RUBBER, AUXILIARY RELAY
$2.29¢1 144
#21
SELF TAPPING SCREW ST4.2X13
$1.89¢943
#22
CLIP NUT ST4.8
$1.25¢627
#23
SENSOR, ROLL OVER
$34.49¢17 244
#24
BOLT M5X25
$2.29¢1 144
#25
OXYGEN SENSOR
$218.49¢109 244
#26
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
#27
CLIP, CLUTCH CABLE
$1.25¢627
#28
ECU
$494.49¢247 244
#29
T BOX NFA
$919.99¢459 994
#30
RUBBER RING, T BOX
$2.29¢1 144
#31
MOUNTING BRACKET, INTELLIGENT VEHICLE TERMINAL
$9.19¢4 594
#32
BOLT M6X16
$1.25¢627
#33
BOLT M5X12
$5.74¢2 869
#34
DIAGNOSTIC BARRIER, IGNITER
$3.44¢1 719
