COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

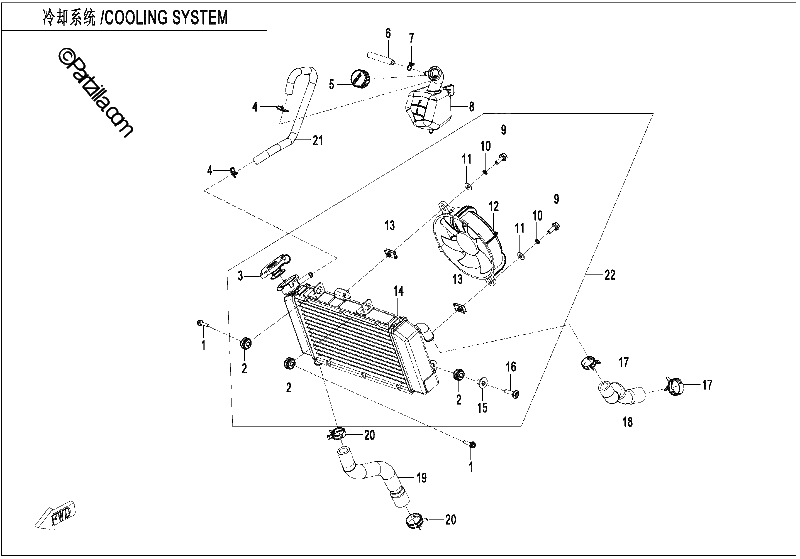

Diagrama de COOLING SYSTEM

Repuestos

#1
30006-060020810
BOLT M6X20
No Disponible
1
#2
6KM-181001-8001
DAMPING RUBBER MAT
$3.44¢1 719
1
#3
8010-180024
CAP, WATER FILLER
$19.54¢9 769
1
#4
30601-113010
CLAMP D13
$1.25¢627
1
#5
6KJ0-180302
CAP, RESERVOIR TANK
$2.29¢1 144
1
#6
6KMV-180001-B001
OVERFLOW HOSE, RESERVOIR
$1.25¢627
1
#7
30601-109010
CLAMP D9
$1.25¢627
1
#8
6KJ0-180310
RESERVIOR TANK ASSEMBLY
$28.74¢14 369
1
#9
30006-060016810
BOLT M6X16
$1.25¢627
1
#10
30306-060112
WASHER
No Disponible
1
#11
30303-060112
WASHER
$1.25¢627
1
#12
6KMV-181200-6002
FAN MOTOR ASSEMBLY
$137.99¢68 994
1
#13
8030-040800-00001
NUT CLIP M6
$2.29¢1 144
1
#14
6KMV-181100-B000
RADIATOR ASSEMBLY
$344.99¢172 494
1
#15
9060-180029
RUBBER TUBE, RADIATOR
$2.29¢1 144
1
#16
8010-000004
BOLT M6X14
$1.25¢627
1
#17
6100-180001
CLAMP D24
$5.74¢2 869
1
#18
6KM0-180001
WATER INLET HOSE, RADIATOR
$11.49¢5 744
1
#19
6KM0-180002
WATER OUTLET HOSE, RADIATOR
$13.79¢6 894
1
#20
6KM0-180004
CLAMP B28
$5.74¢2 869
1
#21
6KMV-180004-B000
CONNECTING PIPE, RESERVOIR TANK
$4.59¢2 294
1
#22
6KMV-181000-B000
RADIATOR FAN ASSEMBLY
$344.99¢172 494
1
