PLASTIC 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

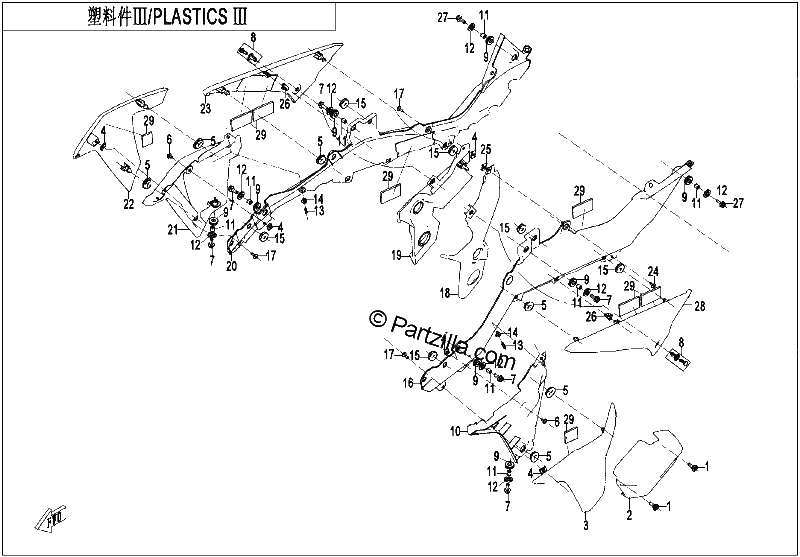

Diagrama de PLASTIC 3

Repuestos

#1
6NQ-000205-6001
MOUNTING SCREW, CHAIN GUARD
$1.25¢627
1
#2
6KM0-043701
DECO COVER, CANISTER
$11.49¢5 744
1
#4
8080-000002
CLIP NUT ST4.8
$1.25¢627
1
#5
8080-040064
DAMPER, FRONT FENDER
$1.25¢627
1
#6
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#7
30006-060020810
BOLT M6X20
No Disponible
1
#8
9060-040310
PLASTIC CLIPS
$1.25¢627
1
#9
5BY0-040010
RUBBER SLEEVE
$2.29¢1 144
1
#10
6KMV-041201-B001
LEFT HAND INNER PANEL, RESERVOIR TANK
$20.69¢10 344
1
#11
6090-040303
BUSHING
$1.25¢627
1
#12
30305-060112
WASHER M6
$1.25¢627
1
#13
8080-041130
PLASTIC SCREW
$1.25¢627
1
#14
8080-041130
PLASTIC SCREW
$1.25¢627
1
#15
A000-040302
RUBBER DAMPER
$3.44¢1 719
1
#17
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#18
6KMV-043001-6000
LEFT HAND PANEL, FRAME
$10.34¢5 169
1
#19
6KMV-043101-6000
RIGHT HAND PANEL, FRAME
$10.34¢5 169
1
#21
6KMV-041301-B001
RIGHT HAND INNER PANEL, RESERVOIR TANK
$20.69¢10 344
1
#23
6KMV-042001-6000
LOWER RIGHT HAND DECO STRAP
$11.49¢5 744
1
#24
30118-420095010
SELF TAPPING SCREW ST4.2X9.5
$1.25¢627
1
#25
8010-000002
CLAMP ST4.2
$2.29¢1 144
1
#26
8080-000001
CLASP
$1.25¢627
1
#27
30006-060016810
BOLT M6X16
$1.25¢627
1
#28
6KMV-041901-6000
LOWER LEFT HAND DECO STRAP
$11.49¢5 744
1
#29
9010-120008
SPONGE DAMPER, FUEL TANK
$3.44¢1 719
1
