SIDE STAND MIDDLE SUPPORTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

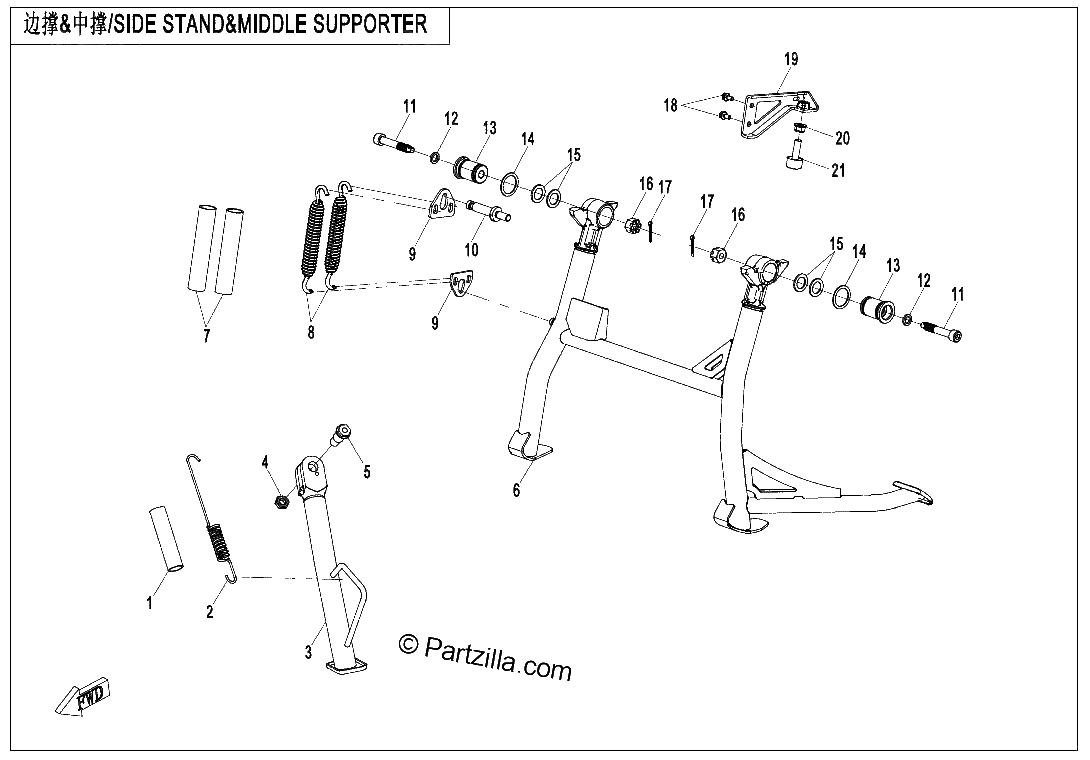

Diagrama de SIDE STAND MIDDLE SUPPORTER

Repuestos

#1
A000-030004
SPRING COLLAR, SIDE STAND
$3.74¢1 869
1
#2
A000-030210
SPRING, SIDE STAND
$4.99¢2 494
1
#3
6WWV-030200-5000
SIDE BRACKET ASSEMBLY
$87.49¢43 744
1
#4
30208-102810
NUT M10X1.25
$1.36¢681
1
#5
A000-030006
BOLT, SIDE STAND
$3.74¢1 869
1
#6
6WWV-030100-5000
MIDDLE SUPPORTER ASSEMBLY
$199.99¢99 994
1
#7
6L30-030705
SPRING SLEEVE, SIDE BRACKET
$2.49¢1 244
1
#8
6L30-030060
SPRING, MAIN BRAKCET
$24.99¢12 494
1
#9
6WWV-030106-5000
SPRING HOOK, MIDDLE SUPPORTER
$4.99¢2 494
1
#10
6WWV-030005-5000
SPRING PIN, MIDDLE SUPPORTER
$4.99¢2 494
1
#11
6L30-030093
BOLT
$3.74¢1 869
1
#12
6L30-030720
SELF LOCK RETAINER KIT
$3.74¢1 869
1
#13
6L30-030701
BUSHING MAIN BRACKET
$12.49¢6 244
1
#14
6L30-030706
FRICTION WASHER
$1.36¢681
1
#15
1F30-024014
O RING 17X2
$2.49¢1 244
1
#16
6L30-030094
SLOTTED NUT
$3.74¢1 869
1
#17
30903-0252610
COTTER PIN. 2.5X26
$1.36¢681
1
#18
6WWV-046702-5000
INNER HEX SCREW M6X12
$1.36¢681
1
#19
6WWV-030190-5000
LIMIT SEAT, MIDDLE SUPPORTER
$16.24¢8 119
1
#20
30200-080810
NUT M8
$2.49¢1 244
1
#21
6L30-030080
DAMPING MATE ASSEMBLY
$6.24¢3 119
1
