FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

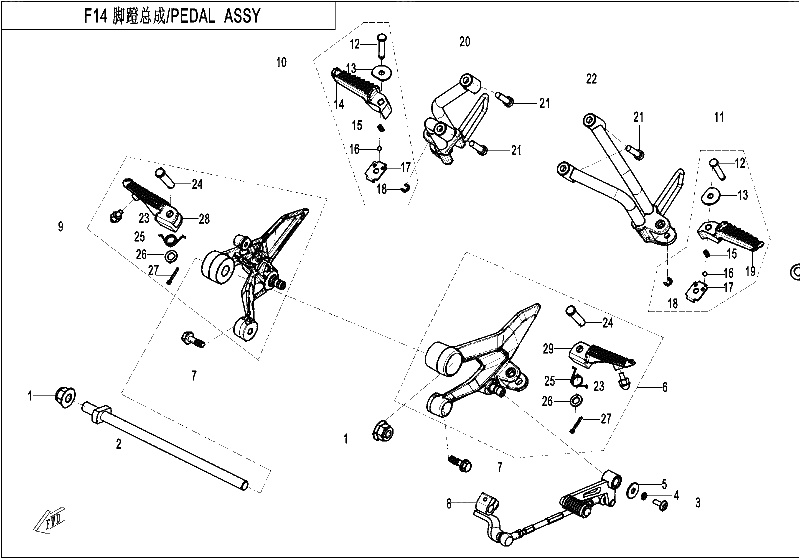

Diagrama de FOOTREST

Repuestos

#1
30204-143810
NUT M14X1.5
$2.29¢1 144
1
#2
6FIV-060007-7100
REAR FORK SHAFT
$19.54¢9 769
1
#3
6WWV-046802-5000
INNER HEX SCREW M6X16
$1.25¢627
1
#4
30303-060112
WASHER
$1.25¢627
1
#5
30301-060470
RETAINER
$1.25¢627
1
#6
6FIV-142000-7100
LEFT HAND FRONT FOOTREST BRACKET
$103.49¢51 744
1
#7
30006-080025810
BOLT M8X25
$1.25¢627
1
#8
6FIV-141000-7100
GRARSHIFT ASSEMBLY
$45.99¢22 994
1
#9
6FIV-143000-7100
RIGHT HAND FRONT FOOTREST ASSEMBLY
$103.49¢51 744
1
#10
A000-1401B0
REAR STEP ASSEMBLY,RIGHT HAND
$17.24¢8 619
1
#11
A000-1401A0
REAR STEP ASSEMBLY LEFT HAND
$17.24¢8 619
1
#12
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#13
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#14
A000-140109
REAR STEP,RIGHT HAND
$11.49¢5 744
1
#15
5190-037813
SPRING
$2.29¢1 144
1
#16
5190-037814
STEEL BALL
$1.14¢569
1
#17
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#18
30802-00605
CIRCLIP
$1.25¢627
1
#19
A000-140108
REAR STEP LEFT HAND
$11.49¢5 744
1
#20
6FIV-140300-7100
RIGHT HAND REAR FOOTREST BRACKET
$45.99¢22 994
1
#21
30102-080025810
SCREW, M8X25
$1.25¢627
1
#22
6FIV-140200-7100
LEFT HAND REAR FOOTREST BRACKET
$45.99¢22 994
1
#23
A010-140123
LIMIT BOLT
No Disponible
1
#24
6WWV-140141-5000
PIN SHAFT
$2.29¢1 144
1
#25
A000-140103-20000
SPRING
$2.29¢1 144
1
#26
30300-100112
WASHER M10
$1.25¢627
1
#27
30903-0322210
COTTER PIN, 3.2X22
$1.25¢627
1
#28
6FIV-140900-7100
RIGHT HAND FRONT FOOTREST BRACKET
$22.99¢11 494
1
#29
6FIV-140800-7100
LEFT HAND FRONT FOOTREST BRACKET
$22.99¢11 494
1
