BRAKE SYSTEM 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

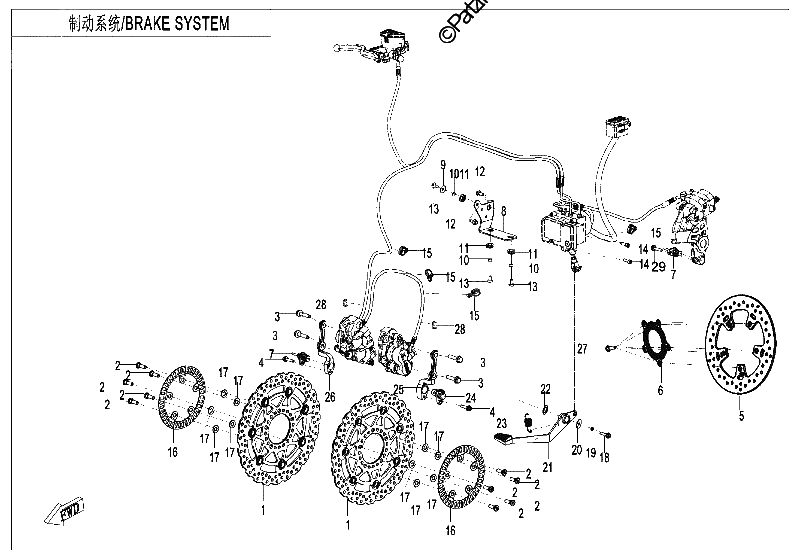

Diagrama de BRAKE SYSTEM 2

Repuestos

#1
A000-080010
FRONT BRAKE DISC
$187.49¢93 744
1
#2
A000-080003-10000
BOLT, BRAKE DISC
$2.49¢1 244
1
#3
30006-102055870
BOLT M10X1.25X55
No Disponible
1
#4
30006-102055860
BOLT M10X1.25X55
No Disponible
1
#5
6NQV-080006-2600
REAR BRAKE DISC
$87.49¢43 744
1
#6
6GU-090002-6001
REAR GEAR RING
$14.99¢7 494
1
#7
6KMV-080004-8500-M1
SPEED SENSOR
$99.99¢49 994
1
#8
6NQV-080910-6601
BRACKET, ABS CONTROLLER
No Disponible
1
#8
6NT1-030180
BRACKET ASSEMBLY, ABS CONTROLLER
$18.74¢9 369
1
#9
30305-060112
WASHER M6
$1.36¢681
1
#10
A000-050014
BUSHING
$2.49¢1 244
1
#11
A000-050013
RUBBER CUSHION
$1.36¢681
1
#12
30006-060025810
BOLT M6X25
$3.74¢1 869
1
#13
6KM-040702-8000
INNER HEX SCREW M6X12
$1.36¢681
1
#14
30006-080025860
BOLT M8X25
No Disponible
1
#15
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.36¢681
1
#16
6NTG-080008-10000
FRONT GEAR RING
$22.49¢11 244
1
#17
A000-080008-10000
WASHER,FRONT RING
$1.36¢681
1
#18
30006-060016810
BOLT M6X16
$1.36¢681
1
#19
30303-060112
WASHER
$1.36¢681
1
#20
A000-080006-10000
WASHER 1
$2.49¢1 244
1
#21
6NQ0-080304-1H300
PEDAL, REAR BRAKE SILVER BLACK
No Disponible
1
#22
A000-080007-10000
WASHER 2
$2.49¢1 244
1
#23
6NTG-080005
RETURN SPRING
$3.74¢1 869
1
#24
6NQV-150400-2802
SPEED SENSOR
$62.49¢31 244
1
#25
6NQ0-050017-10000
LEFT HAND BRACKET, SENSOR
$19.99¢9 994
1
#26
6NQ0-050018
RIGHT HAND SEAT, SENSOR
$17.49¢8 744
1
#27
A000-080003-10000
BOLT, BRAKE DISC
$2.49¢1 244
1
#28
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.49¢1 244
1
#29
30006-060012870
BOLT M6X12
$0.75¢375
1
