REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

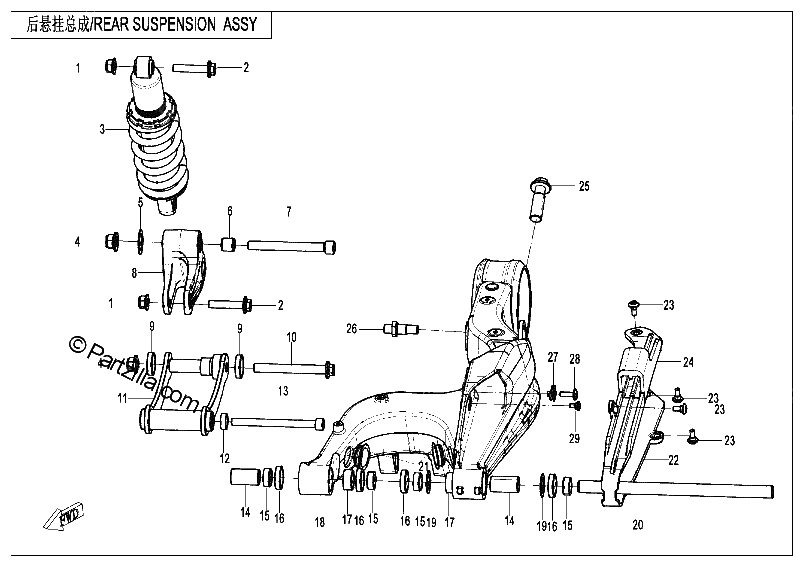

Diagrama de REAR SUSPENSION

Repuestos

#1
30204-102810
NUT M10X1.25
$1.25¢627
1
#2
6AQV-060004-1002
BOLT M10X50 REAR SHOCK ABSORBER
$4.59¢2 294
1
#3
6AQV-060100-1002-M2
SHOCK ABSORBER
$321.99¢160 994
1
#4
30204-122810
NUT M12X1.25
$1.25¢627
1
#5
6AQV-060304-3000
WASHER
$2.29¢1 144
1
#6
6AQV-060302-3000
BUSHING
$4.59¢2 294
1
#7
6AQV-060303-3000
BOLT M12X110
$6.89¢3 444
1
#8
6AQV-060500-1002
A SWING ARM ASSEMBLY
$229.99¢114 994
1
#9
6AQV-060504-1000
RETAINER
$3.44¢1 719
1
#10
6AQV-060307-3000
BOLT M12X103
$6.89¢3 444
1
#11
6AQV-060600-1001
TIE ROD
$103.49¢51 744
1
#12
6AQV-060005-1000
SPACER, TIE ROD
$4.59¢2 294
1
#13
6AQV-060009-1002
BOLT TIE ROD M10X130
$8.04¢4 019
1
#14
6WWV-060003-5000
LINER, REAR SWING ARM
$10.34¢5 169
1
#15
6WWV-060002-5000
BUSHING, REAR SWING ARM
$6.89¢3 444
1
#16
6WWV-060030-5000-10
OIL SEAL
$3.44¢1 719
1
#17
30403-02200
NEEDLE BEARING HK2212 22X28X12
$4.59¢2 294
1
#19
6WWV-060004-5000
WASHER, REAR SWING ARM
$3.44¢1 719
1
#20
6AQV-060007-1000
REAR FORK SHAFT
$36.79¢18 394
1
#21
6NT1-060003
DUST CAP,SMALL
$2.29¢1 144
1
#22
6AQV-060305-3000
CHAIN GUARD 1
No Disponible
1
#23
6WWV-046602-5000
INNER HEX STEPPED SCREW M6X14
$1.25¢627
1
#24
6AQV-060306-3000
CHAIN GUARD 2
No Disponible
1
#25
6KMV-060042-2000
BOLT, HUB
No Disponible
1
#26
6KMV-060011-2000
LIMIT SEAT, CALIPER BRACKET
No Disponible
1
#27
8030-040800-00001
NUT CLIP M6
$2.29¢1 144
1
#28
6WWV-046902-5000
INNER HEX SCREW M6X20
$1.25¢627
1
#29
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
