REAR HANDRAIL FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

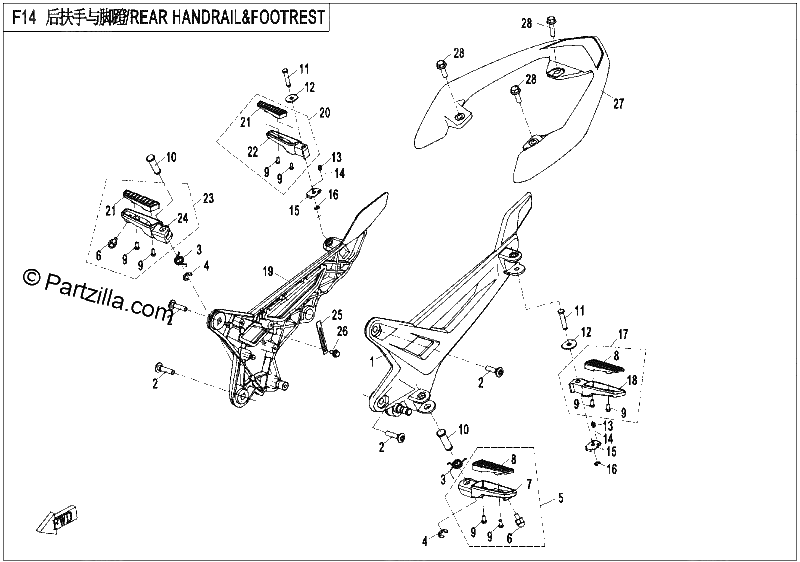

Diagrama de REAR HANDRAIL FOOTREST

Repuestos

#1
6KJ0-140110-3B500
LEFT HAND FOOTREST BRACKET ASSEMBLY TITANIUM GREY
No Disponible
1
#2
6KM0-140107
BOLT M8
$2.49¢1 244
1
#3
A000-140103-20000
SPRING
$2.49¢1 244
1
#4
30802-00903
SPLIT WASHER
$1.36¢681
1
#5
6KJ0-140130-0B500
FRONT FOOTREST, LEFT HAND, TITANIUM GRAY
No Disponible
1
#6
A010-140123
LIMIT BOLT
No Disponible
1
#7
6KJ0-140131-2B500
FRONT FOOTREST SEAT, LEFT HAND, TITANIUM GRAY
No Disponible
1
#8
6KJ0-140132
RUBBER, LEFT HAND FOOT PEDAL
$8.74¢4 369
1
#9
30105-050014410
SCREW M5X14 (SILVER)
$1.36¢681
1
#10
A000-140141
PIN SHAFT 12
$6.24¢3 119
1
#11
A000-140142
PIN SHAFT 8
$3.74¢1 869
1
#12
A000-140106
LOCATING GASKET 2
$2.49¢1 244
1
#13
5190-037813
SPRING
$2.49¢1 244
1
#14
5190-037814
STEEL BALL
$1.24¢619
1
#15
A000-140104
LOCATING GASKET 1
$3.74¢1 869
1
#16
30802-00605
CIRCLIP
$1.36¢681
1
#17
6KJ0-140150-2B210
REAR FOOTREST, LEFT HAND, MATTE BLACK
No Disponible
1
#19
6KJ0-140120-3B500
BRACKET, RIGHT HAND FOOTREST, TITANIUM GREY
No Disponible
1
#20
6KJ0-140160-1B510
REAR FOOTREST(LEFT HAND) (TITANIUM GRAY)
No Disponible
1
#21
6KJ0-140142
RUBBER ASSEMBLY,FRONT STEP, RIGHT HAND
$12.49¢6 244
1
#22
6KJ0-140161-2B500
REAR FOOTREST, RIGHT HAND (TITANIUM GRAY,THREE PHASE STATE)
No Disponible
1
#23
6KJ0-140140-1B500
FRONT RIGHT HAND FOOTREST ASSEMBLY TITANIUM GREY
No Disponible
1
#24
6KJ0-140141-2B500
FRONT FOOTREST SEAT, RIGHT HAND, TITANIUM GRAY
No Disponible
1
#25
0180-014010
WIRE CLAMP
No Disponible
1
#26
30006-060012870
BOLT M6X12
$0.75¢375
1
#27
6KJ0-140201-0VQ00
REAR ARMREST
No Disponible
1
#28
30006-080025810
BOLT M8X25
$1.36¢681
1
