PLASTIC A 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

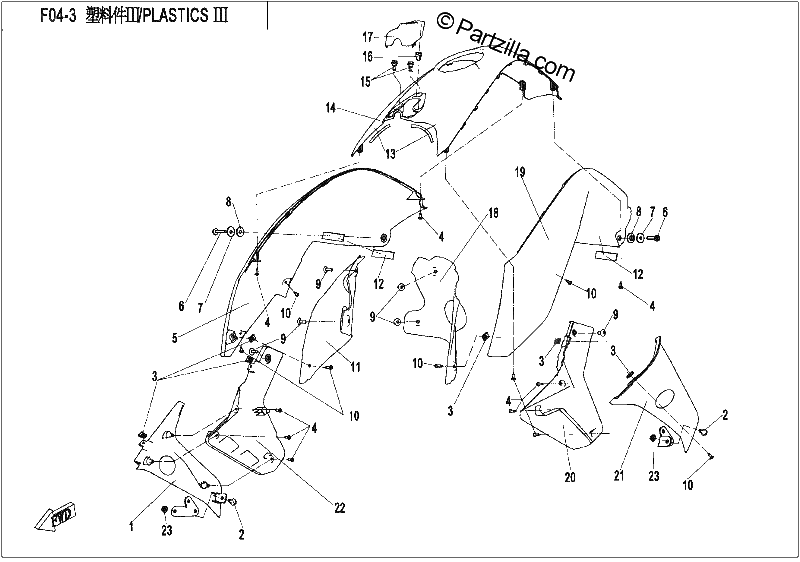

Diagrama de PLASTIC A 3

Repuestos

#2
30006-060016870
BOLT M6X16
$1.25¢627
1
#3
8080-000002
CLIP NUT ST4.8
$1.25¢627
1
#4
30110-421130010
SELF TAPPING SCREW ST4.2X13
$1.89¢943
1
#5
6KJ0-041101-0B500
RIGHT HAND PANEL, FUEL TANK (TITANIUM BLACK)
No Disponible
1
#5
6KJ0-041101-0EP00
RIGHT HAND PANEL, FUEL TANK (TURQUOISE BLUE)
No Disponible
1
#6
30006-060022810
BOLT M6X22
$1.25¢627
1
#7
30301-060412
WASHER M6
$2.29¢1 144
1
#8
8080-140004
LOCK BUSHING, REAR RACK
$1.25¢627
1
#9
6KM-040702-8000
INNER HEX SCREW M6X12
$1.25¢627
1
#10
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#11
6KJ0-040701
FRONT INNER PANEL, RIGHT HAND
$5.74¢2 869
1
#12
9060-038129
SPONGE STRIP 1, HEAT INSULATOR
$3.44¢1 719
1
#13
8080-132002
SPONGE I, REAR SEAT
$3.44¢1 719
1
#14
6KJ0-040901-0VE00
UPPER PANEL, FUEL TANK (NEBULA WHITE)
No Disponible
1
#14
6KJ0-040901-0BM00
UPPER PANEL, FUEL TANK (NEBULA BLACK)
No Disponible
1
#15
8010-000004
BOLT M6X14
$1.25¢627
1
#16
8080-000001
CLASP
$1.25¢627
1
#17
6KJ0-040801
DECO COVER,POWER LOCK
$1.71¢857
1
#18
6KJ0-040601
FRONT INNER PANEL,LEFT HAND
$5.74¢2 869
1
#19
6KJ0-041001-1B500
LEFT HAND PANEL, FUEL TANK (TITANIUM GREY)
No Disponible
1
#19
6KJ0-041001-1EP00
LEFT HAND PANEL, FUEL TANK (TURQUOISE BLUE)
No Disponible
1
#20
6KJ0-041201
LEFT HAND INNER PANEL,RADIATOR
$5.74¢2 869
1
#22
6KJ0-041301
RIGHT HAND INNER PANEL,RADIATOR
No Disponible
1
#23
30204-060810
NUT M6
$1.25¢627
1
