COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

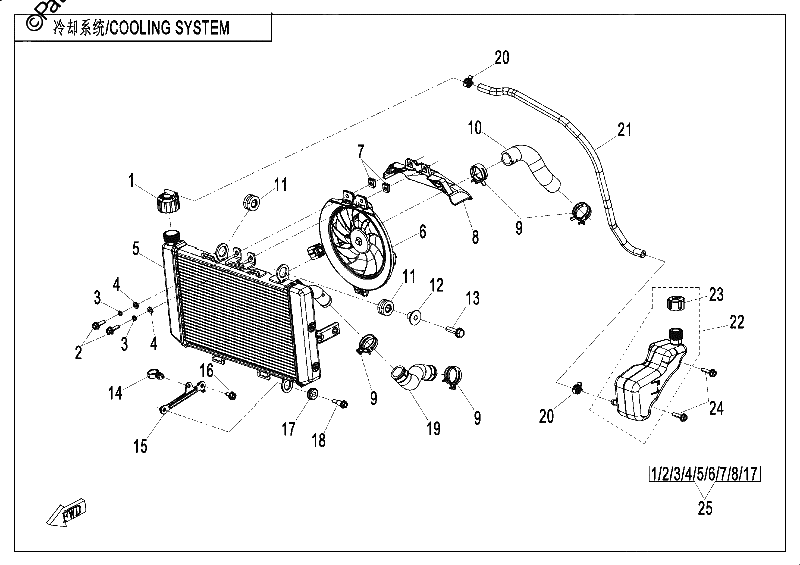

Diagrama de COOLING SYSTEM

Repuestos

#1
6GUV-181010-6001
FILLER CAP ASSEMBLY
$13.79¢6 894
1
#2
30006-060020810
BOLT M6X20
No Disponible
1
#3
30303-060010
WASHER M6
No Disponible
1
#4
30304-060410
WASHER
No Disponible
1
#5
6AQV-181100-4000
RADIATOR ASSEMBLY
$379.49¢189 744
1
#6
6AQV-181200-1000
FAN MOTOR
$218.49¢109 244
1
#7
8030-040800-00001
NUT CLIP M6
$2.29¢1 144
1
#8
6AQV-181000-1000-20
DEFLECTOR
$20.69¢10 344
1
#9
30601-229060
CLAMP D29
$4.59¢2 294
1
#10
6AQV-180002-1000
WATER OUTLET PIPE, RADIATOR
$8.04¢4 019
1
#11
A000-180005
DAMPER, RADIATOR
$4.59¢2 294
1
#12
A000-180010-20000
COLLAR, RADIATOR
$2.29¢1 144
1
#13
30006-080030870
BOLT M8X30
$2.29¢1 144
1
#14
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#15
6AQV-180010-4000
CONNECTING BRACKET ASSEMBLY
$6.89¢3 444
1
#16
30006-060012870
BOLT M6X12
$0.69¢345
1
#17
6WWV-181001-5000
DAMPING MAT, RADIATOR
$1.25¢627
1
#18
6WWV-180008-5000
STEPPED SCREW M6X25
$2.29¢1 144
1
#19
6AQV-180001-1000
WATER INLET PIPE, RADIATOR
$8.04¢4 019
1
#20
30601-212570
CLAMP D12.5
$2.29¢1 144
1
#21
6AQV-180003-4000
CONNECTING PIPE, RESERVOIR TANK
$5.74¢2 869
1
#22
6AQV-180100-4000
RESERVOIR ASSEMBLY
$25.29¢12 644
1
#23
6AQV-180110-4000
RESERVOIR CAP ASSEMBLY
$2.29¢1 144
1
#24
30006-060025870
BOLT M6X25
$1.25¢627
1
#25
6AQV-181000-4000
RADIATOR FAN ASSEMBLY
$540.49¢270 244
1
