FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

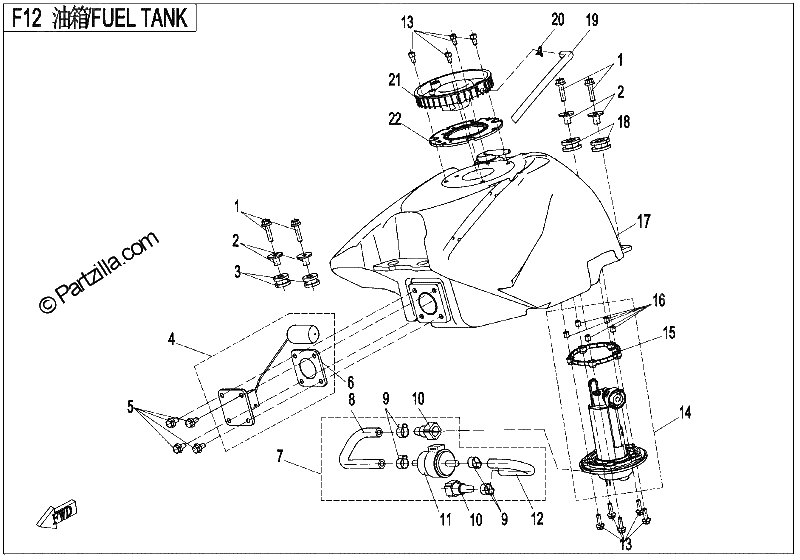

Diagrama de FUEL TANK

Repuestos

#1
30006-060025810
BOLT M6X25
$3.44¢1 719
1
#2
5020-031002
RUBBER COLLAR
$1.25¢627
1
#3
6KJ0-120004
RUBBER BUSHING
$2.29¢1 144
1
#4
6KJ0-170200
FUEL SENSOR
$11.49¢5 744
1
#5
30006-060012870
BOLT M6X12
$0.69¢345
1
#6
9010-170121
SEAL RING
$3.44¢1 719
1
#7
6KJ0-120300
HIGH PRESSURE FUEL HOSE
No Disponible
1
#8
6KJ0-120310
HIGH PRESSURE FUEL HOSE 1
$28.74¢14 369
1
#9
6070-120400
CLAMP D14.5
$2.29¢1 144
1
#10
6KJ0-120330-10000
QUICK JOINT
$12.64¢6 319
1
#10
6KJ0-120330
QUICK JOINT
$11.49¢5 744
1
#11
6090-120220
FUEL FILTER, INLINE (WITH RUBBER COLLAR)
$26.44¢13 219
1
#12
6KJ0-120320
HIGH PRESSURE FUEL HOSE 2
$22.99¢11 494
1
#13
30006-050016840
BOLT M5X16
$1.14¢569
1
#14
6KJV-150900-8001
FUEL PUMP ASSEMBLY
$172.49¢86 244
1
#15
6KJ0-150902
SEAL GASKET
$5.74¢2 869
1
#16
6KJ0-150903
BUSHING
$2.29¢1 144
1
#17
6KJ0-120100
FUEL TANK
$264.49¢132 244
1
#18
6KJ0-120001
RUBBER BUSHING
$1.14¢569
1
#19
6KJ0-120003-00001
OVERFLOW PIPE, FUEL TANK
$9.19¢4 594
1
#20
30601-109010
CLAMP D9
$1.25¢627
1
#21
6KJ0-120200
FUEL TRAY
$11.49¢5 744
1
#22
6KJ0-120002
SEAL GASKET ,THE FUEL TRAY
$5.74¢2 869
1
