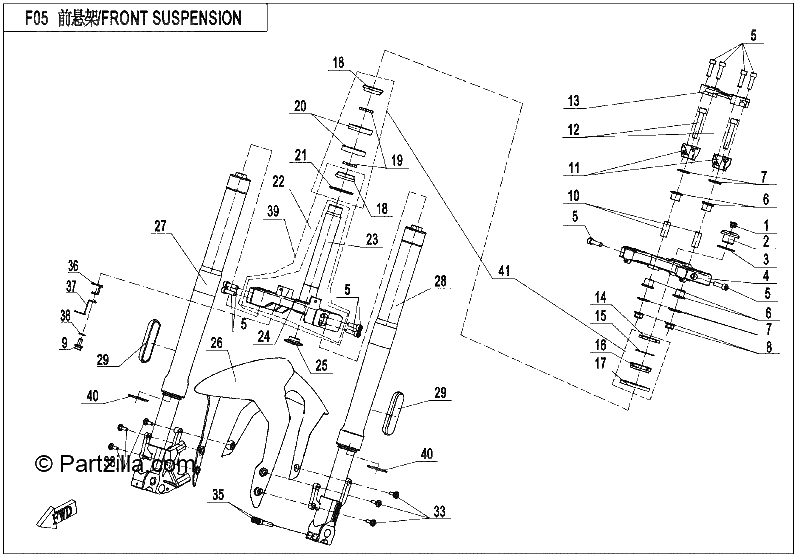

FRONT SUSPENSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER PLUG 1
$1.36¢681
#2
FIXING SCREW, UPPER TRIPLE CLAMP
$12.49¢6 244
#3
WASHER
$1.36¢681
#4
UPPER CONNECTING PLATE, SILVER WHITE
$149.99¢74 994
#5
INNER HEX SCREW, M8X30
$3.74¢1 869
#6
DAMPER RUBBER,UPPER HOLDER
$1.36¢681
#7
WASHER
$1.36¢681
#8
NUT M10X1.25
$1.36¢681
#9
BOLT M6X12
$0.75¢375
#10
LINER, UPPER TRIPLE CLAMP
$1.24¢619
#11
HANDLEBAR SUPPORT, SILVER WHITE
$24.99¢12 494
#12
SCREW M10X60X1.25
$2.49¢1 244
#13
HANDLEBAR COVER, SILVER WHITE
$37.49¢18 744
#14
LOCK NUT
$6.24¢3 119
#15
WASHER
$1.36¢681
#16
LOCK NUT
$6.24¢3 119
#17
DUST SEAL, UPPER
$1.36¢681
#18
STEERING BEARING ASSEMBLY
$37.49¢18 744
#19
STEERING BEARING ASSEMBLY
$37.49¢18 744
#20
STEERING BEARING ASSEMBLY
$37.49¢18 744
#21
ANTI DUST CAP, LOWER RETAINING RING
$3.74¢1 869
#22
LOWER HOLDER, FRONT FORK
$224.99¢112 494
#23
FRONT FORK
$49.99¢24 994
#24
LOWER CONNECTING PLATE, SILVER WHITE
$162.49¢81 244
#25
RUBBER PLUG 2
$2.49¢1 244
#26
FRONT FENDER, ROYAL BLUE
$24.99¢12 494
#27
FRONT SHOCK ABSORBER, RIGHT HAND
$499.99¢249 994
#28
FRONT SHOCK ABSORBER, LEFT HAND
$499.99¢249 994
#29
FRONT SIDE REFLECTOR
$4.99¢2 494
#33
SCREW, CHAIN GUARD
$7.49¢3 744
#35
SCREW, M8X40
$1.36¢681
#36
FIXING WIRE
$2.49¢1 244
#37
LIMIT WIRE
$7.49¢3 744
#38
WASHER
No Disponible
#39
LOWER TRIPLE CLAMP & RETAINER ASSEMBLY
$249.99¢124 994
#40
OIL SEAL 37X50X11
No Disponible
#41
LOCK NUT, STEERING BEARING
No Disponible
