FOOTREST REAR HANDRAIL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

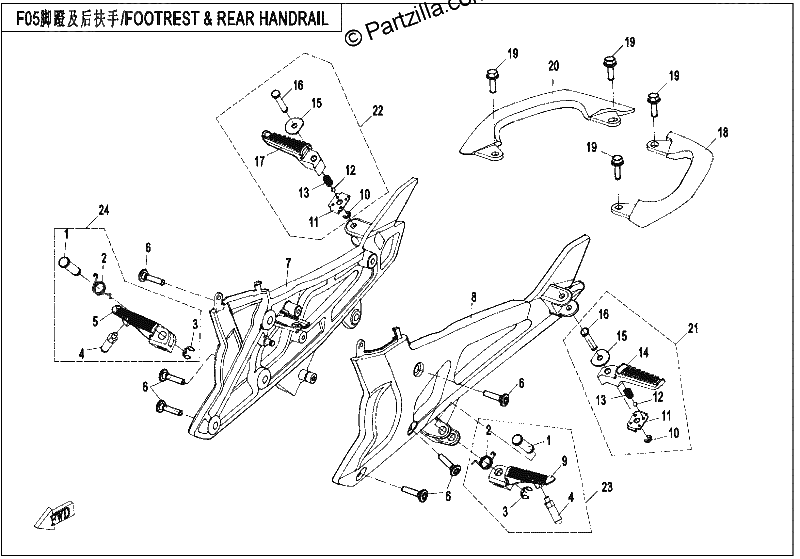

Diagrama de FOOTREST REAR HANDRAIL

Repuestos

#1
A000-140141
PIN SHAFT 12
$5.74¢2 869
1
#2
A000-140103-20000
SPRING
$2.29¢1 144
1
#3
30802-00903
SPLIT WASHER
$1.25¢627
1
#4
A000-140122
LIMIT BOLT
No Disponible
1
#5
A000-140131
FRONT STEP RIGHT HAND
$12.64¢6 319
1
#6
6KM0-140107
BOLT M8
$2.29¢1 144
1
#7
A000-140110-0V10
BRACKET, RIGHT HAND FOOTREST, SILVER WHITE
$229.42¢114 712
1
#7
A000-140111-0B20
BRACKET
No Disponible
1
#8
A000-140101-0B20
LEFT HAND FOOTREST BRACKET MATTE BLACK
No Disponible
1
#8
A000-140101-0V10
BRACKET,LEFT HAND FOOTREST, SILVER WHITE
$207.69¢103 845
1
#9
A000-140121
FRONT STEP LEFT HAND SILVER
$12.64¢6 319
1
#10
30802-00605
CIRCLIP
$1.25¢627
1
#11
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#12
5190-037814
STEEL BALL
$1.14¢569
1
#13
5190-037813
SPRING
$2.29¢1 144
1
#14
A000-140108
REAR STEP LEFT HAND
$11.49¢5 744
1
#15
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#16
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#17
A000-140109
REAR STEP,RIGHT HAND
$11.49¢5 744
1
#18
A000-140210
LEFT HAND REAR ARMREST
No Disponible
1
#19
30006-080025810
BOLT M8X25
$1.25¢627
1
#20
A000-140220
REAR HANDRAIL RIGHT HAND
No Disponible
1
#21
A000-1401A0
REAR STEP ASSEMBLY LEFT HAND
$17.24¢8 619
1
#22
A000-1401B0
REAR STEP ASSEMBLY,RIGHT HAND
$17.24¢8 619
1
#23
A000-1401C0
FRONT FOOTREST,LEFT HAND
No Disponible
1
#24
A000-1401D0
FOOTREST ASSEMBLY, RIGHT HAND
No Disponible
1
