FRAME ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

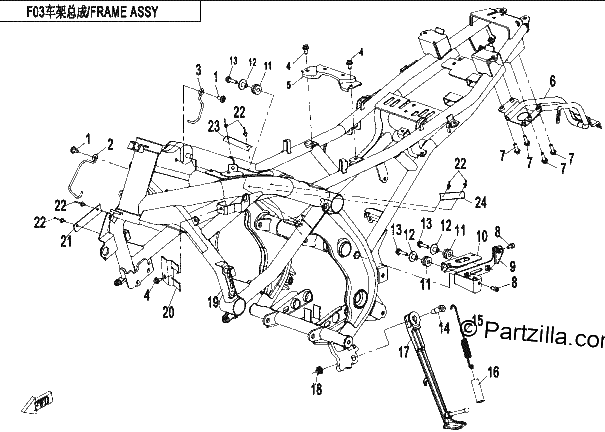

Diagrama de FRAME ASSY

Repuestos

#1
6KM-040702-8000
INNER HEX SCREW M6X12
$1.36¢681
1
#2
A000-030002
RIGHT HAND CLAMP, MAIN CABLE
$3.74¢1 869
1
#3
A000-030001
LEFT HAND CLAMP, MAIN CABLE
$4.99¢2 494
1
#4
30006-060012870
BOLT M6X12
$0.75¢375
1
#5
A000-030150
MOUNT BRACKET, FUEL TANK
No Disponible
1
#5
A000-030150-00001
MOUNT BRACKET, FUEL TANK
$8.74¢4 369
1
#6
A000-030180
BRACKET REAR FENDER
No Disponible
1
#7
30006-060016810
BOLT M6X16
$1.36¢681
1
#8
30102-060012840
INNER HEX SCREW M6X12
$1.36¢681
1
#9
A000-030120
BRACKET?, REGULATOR
$12.49¢6 244
1
#10
A000-030130
BRACKET?, REGULATOR
$7.49¢3 744
1
#11
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.36¢681
1
#12
5020-031002
RUBBER COLLAR
$1.36¢681
1
#13
30006-060025810
BOLT M6X25
$3.74¢1 869
1
#14
A000-030006
BOLT, SIDE STAND
$3.74¢1 869
1
#15
A000-030210
SPRING, SIDE STAND
$4.99¢2 494
1
#16
A000-030004
SPRING COLLAR, SIDE STAND
$3.74¢1 869
1
#17
A000-030160
SIDE STAND ASSEMBLY PLASTIC POWDER
No Disponible
1
#18
30208-102040
NUT M10X1.25
No Disponible
1
#19
A000-031000-2BB0
FRAME ASSEMBLY PLASTIC POWDER
$1999.99¢999 994
1
#19
A000-031000-5BC00
FRAME ASSEMBLY
No Disponible
1
#20
A000-031122-10000
MOUNTING PLATE, CANISTER
No Disponible
1
#20
A000-030110
BRACKET, FLASHER
No Disponible
1
#21
A000-190205-US13C
VIN PLATE
No Disponible
1
#21
A000-190011
VIN PLATE
No Disponible
1
#22
30902-0401320
BLIND RIVET
$1.36¢681
1
