SIDE BOX RH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

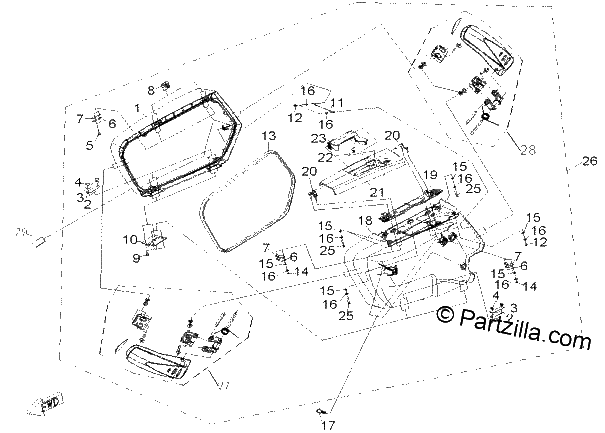

Diagrama de SIDE BOX RH

Repuestos

#1
A010-220004-0B30
COVER,Right Hand SIDE BOX, PEARL BLACK
$344.99¢172 494
1
#1-Jan
A010-220004-0B50
COVER,Right Hand SIDE BOX
$287.49¢143 744
1
#2
A010-220006
WASHER,HINGE
$2.29¢1 144
1
#2-Jan
A010-220004-0R30
COVER, Right Hand SIDE BOX
$287.49¢143 744
1
#3
A010-220005
PLATE,HINGE
$2.29¢1 144
1
#3-Jan
A010-220004-0V20
RIGHT SIDE BOX COVER
$287.49¢143 744
1
#4
30202-050110
NUT M5
$1.25¢627
1
#5
30110-420250010
SELF TAPPING SCREW ST4.2X25
$1.25¢627
1
#6
A010-220012
PLATE,LOCK SEAT
$1.14¢569
1
#7
A010-220013
WASHER,LOCK SEAT
$1.14¢569
1
#8
A010-220014
LOCK SEAT
$3.44¢1 719
1
#9
30105-050012410
SCREW M5X12
$1.25¢627
1
#10
A010-220100
HINGE,SIDE BOX
$34.49¢17 244
1
#11
A010-220501
TIE BAND
$11.49¢5 744
1
#12
30110-420160010
SELF TAPPING SCREW ST4.2X16
$2.29¢1 144
1
#13
A010-220007
SEAL RING
$34.49¢17 244
1
#14
30202-040110
NUT M4
$1.14¢569
1
#15
6090-040203
DAMPER, DEFLECTOR
$4.59¢2 294
1
#16
30305-040112
WASHER
$3.44¢1 719
1
#17
A010-220021
BOLT
$11.49¢5 744
1
#18
A010-220003-0H30
SIDE BOX,Right Hand
$206.99¢103 494
1
#19
A010-220300
LOCK,SIDE BOX
$34.49¢17 244
1
#20
A010-220200
SEAT,LOCKING COVER
$6.89¢3 444
1
#21
A010-220017-0H30
COVER, Right Hand LOCK
$45.99¢22 994
1
#22
A010-220009-00001
SPRING1,RETURN
$1.14¢569
1
#23
A010-220019-0H30
LOCKING COVER, Right Hand
$22.99¢11 494
1
#25
30110-420320040
SCREW, TAPPING ST4.2x32
$1.14¢569
1
#26
A010-2230A0-0B30
SIDE BOX Assembly., Right Hand
$459.99¢229 994
1
#27
A010-220040-10000
FASTNER Assembly.2
$28.74¢14 369
1
#28
A010-220030
FASTNER Assembly.1
$28.74¢14 369
1
#29
A010-160005-1000
REAR REFLECTOR
$5.74¢2 869
1
