CLUTCH ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

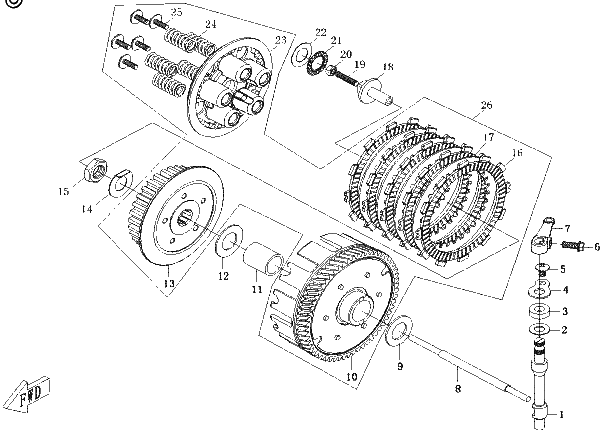

Diagrama de CLUTCH ASSY

Repuestos

#1
0A70-052001
CAMSHAFT
$9.99¢4 994
1
#2
0A70-052002
WASHER 10X20X1
$2.49¢1 244
1
#3
0A70-052100
OIL SEAL 10X20X6
$3.74¢1 869
1
#4
0A70-052003
OIL SEAL GUARD, SEPARATE SWING ARM
$1.24¢619
1
#5
0A70-052004
SCREW M6X10
$1.24¢619
1
#6
0010-090005-0010
BOLT M6X16
$1.36¢681
1
#7
0A70-052005
SEPARATE ROCKER
$12.49¢6 244
1
#8
0A70-050003
ROD, CLUTCH
$6.24¢3 119
1
#9
0A70-050002
WASHER 20X34.5X2
$1.36¢681
1
#10
0A70-051100
PRIMARY DRIVEN GEAR ASSEMBLY
$49.99¢24 994
1
#11
0A70-050001
BUSHING
$8.74¢4 369
1
#12
0120-060007
ADJUSTING WASHER 20
$3.74¢1 869
1
#13
0A70-051201
HUB, CLUTCH
$54.95¢27 475
1
#14
0A70-050004
LOCK WASHER
$1.36¢681
1
#15
0A70-050005
NUT
$1.36¢681
1
#16
0A70-051210
FRICTION DISC, CLUTCH
$4.99¢2 494
1
#17
0A70-051202
DRIVEN DISC, CLUTCH
$3.74¢1 869
1
#18
0A70-050006
BLOCK, CLUTCH
$7.49¢3 744
1
#19
0A70-050007
ADJUST SCREW
$2.49¢1 244
1
#20
30200-060820
NUT M6
$1.24¢619
1
#21
30407-01501
THRUST BEARING & BRACKET
$3.74¢1 869
1
#22
30407-01502
WASHER AS152801
$1.24¢619
1
#23
0A70-051203
PRESSURE PLATE
$18.74¢9 369
1
#24
0A70-051204
SPRING,CLUTCH
$3.74¢1 869
1
#25
30008-050016840
BOLT SET M5X16
$1.24¢619
1
#26
0A70-051000
CLUTCH ASSEMBLY
No Disponible
1
