MUFFLER ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

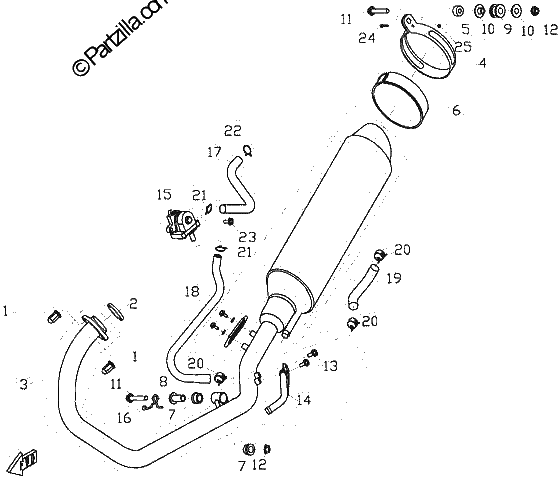

Diagrama de MUFFLER ASSY

Repuestos

#1
8010-020001
NUT M8
$1.36¢681
1
#2
6090-020010
GASKET 42X33X5
$2.49¢1 244
1
#3
610A-0203B0
MUFFLER ASSEMBLY
No Disponible
1
#3
610A-0203A0
MUFFLER ASSEMBLY
No Disponible
1
#4
6100-020001
CLAMP
$49.99¢24 994
1
#5
6100-020002
SPACER BUSHING
$12.49¢6 244
1
#6
6100-020003
CUSHION MAT
$4.99¢2 494
1
#7
6100-020004
DAMPER, EXHAUST PIPE
$1.24¢619
1
#8
6100-020010
COLLAR, EXHAUST PIPE
$3.74¢1 869
1
#9
A000-020004
DAMPER, MUFFLER
$2.49¢1 244
1
#10
A000-020005
BUSHING
No Disponible
1
#11
30006-080045840
BOLT M8X45
$1.24¢619
1
#12
30204-080810
NUT M8
$1.36¢681
1
#13
30006-060012870
BOLT M6X12
$0.75¢375
1
#14
610A-020020
CONNECTING PIPE, GULP
$37.49¢18 744
1
#15
609A-020200
SECOND GULP VALVE
$31.24¢15 619
1
#16
610A-020005
CLIP, GULP PIPE
$2.49¢1 244
1
#17
610A-020007
INLET PIPE, GULP VALVE
$6.24¢3 119
1
#18
610A-020008
OUTLET PIPE I, GULP VALVE
$31.24¢15 619
1
#19
610A-020009
OUTLET PIPE II, GULP VALVE
$9.99¢4 994
1
#20
30601-217010
CLAMP D17
$1.24¢619
1
#21
30601-114010
CLAMP D14
$1.36¢681
1
#22
30601-113010
CLAMP D13
$1.36¢681
1
#23
30006-060020840
BOLT M6X20
$1.36¢681
1
#24
30006-050012840
BOLT
$4.99¢2 494
1
#25
30202-050110
NUT M5
$1.36¢681
1
