PLASTICS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

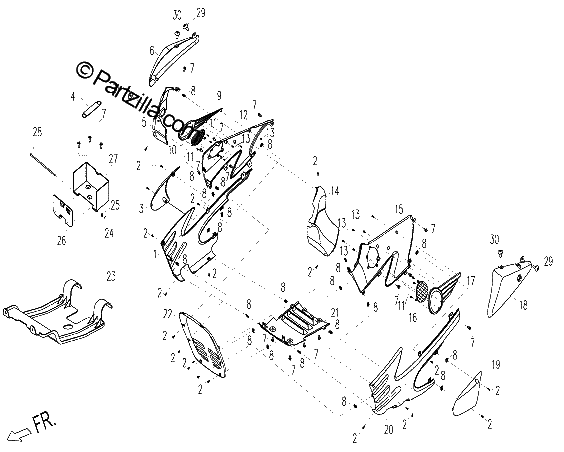

Diagrama de PLASTICS

Repuestos

#1
5BY0-000303
SCREW, SPEAKER
$2.49¢1 244
1
#1
8050-040004-0B20
RIGHT TRIANGLE PANEL (MATT BLACK)
$99.99¢49 994
1
#2
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#2
8050-040018
RIGHT COVER
$124.99¢62 494
1
#3
8050-040008-0B00
DECORATION PANEL(Right Hand) (BLACK)
$99.99¢49 994
1
#3
8010-000002
CLAMP ST4.2
$2.49¢1 244
1
#4
1080-150700
TIE BAND
$7.49¢3 744
1
#4
30006-060012870
BOLT M6X12
$0.75¢375
1
#5
8050-040011-0B00
REAR FENDER(Right Hand) (BLACK)
$37.49¢18 744
1
#5
8050-040002-0B00
PROTECTION PANEL (Right Hand) (BLACK)
$37.49¢18 744
1
#6
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#6
8050-040006-0B00
REAR PROTECTION PANEL (Right Hand ) (BLACK)
$99.99¢49 994
1
#7
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
#7
30006-060012870
BOLT M6X12
$0.75¢375
1
#8
8010-000002
CLAMP ST4.2
$2.49¢1 244
1
#8
8050-040302
TOOL BOX
$6.24¢3 119
1
#9
8050-040303
TOOL BOX COVER
$3.74¢1 869
1
#9
8050-040211
SPEAKER HOUSING (Right Hand)
$37.49¢18 744
1
#10
8050-040021
SEAT SUPPORT
$3.74¢1 869
1
#10
8050-040212
SPEAKER COVER (Right Hand)
$21.24¢10 619
1
#11
5020-031002
RUBBER COLLAR
$1.36¢681
1
#11
30110-290090040
TAPPING SCREW ST2.9x9
$1.24¢619
1
#12
8050-040201-0B00
FRONT PROTECTION PANEL(Right Hand) (BLACK)
$37.49¢18 744
1
#12
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.36¢681
1
#13
30110-350130040
TAPPING SCREW
$1.36¢681
1
#13
8050-040301-0B00
REAR PART, REAR FENDER (BLACK)
$124.99¢62 494
1
#14
8050-040403
RUBBER CUSHION, TAIL LIGHT
$1.24¢619
1
#14
8050-040001-0B00
PROTECTION PANEL(Left Hand) (BLACK)
$49.99¢24 994
1
#15
8050-040101-0B00
FRONT PROTECTION PANEL (Left Hand) (BLACK)
$124.99¢62 494
1
#15
9DQV-160920-6001-M1
SIDE REFLECTOR (AMBER COLOR)
$6.24¢3 119
1
#16
8050-040402
TAIL LIGHT COVER
$24.99¢12 494
1
#16
8050-040112
SPEAKER HOUSING (Left Hand)
$4.99¢2 494
1
#17
30006-060016810
BOLT M6X16
$1.36¢681
1
#17
8050-040111
SPEAKER COVER (Left Hand)
$21.24¢10 619
1
#18
5190-160201
BRACKET, REAR LICENSE PLATE
$16.24¢8 119
1
#18
8050-040005-0B00
REAR PROTECTION PANEL (Left Hand) (BLACK)
$99.99¢49 994
1
#19
30204-060810
NUT M6
$1.36¢681
1
#19
8050-040007-0B00
DECORATION PANEL (Left Hand) (BLACK)
$137.49¢68 744
1
#20
5190-160230-00002
REAR REFLECTOR
$6.24¢3 119
1
#20
8050-040003-0B20
LEFT TRIANGLE PANEL
$99.99¢49 994
1
#21
8050-040401
SPLASH FENDER
$21.24¢10 619
1
#21
8050-040014
BASE PLATE
$37.49¢18 744
1
#22
30202-050110
NUT M5
$1.36¢681
1
#22
8050-040013
FRONT VENTILATION PORT PLATE
$31.24¢15 619
1
#23
8050-040009-0B00
REAR FENDER(Left Hand) (BLACK)
$37.49¢18 744
1
#23
8050-040015
AIR CHANNEL BAFFLE
$37.49¢18 744
1
#24
8050-040012
REAR FENDER(CENTER)
$18.74¢9 369
1
#24
30903-0121420
COTTER PIN (ARMY GREEN)
$1.24¢619
1
#25
8010-200300
TOOLS
$24.99¢12 494
1
#25
30306-050112
BIG WASHER
$1.24¢619
1
#26
8030-040502
COVER, BATTERY BOX
$3.74¢1 869
1
#26
8050-040022
HEAT INSULATION PAPER
$1.24¢619
1
#27
8030-040501
BATTERY BOX
$12.49¢6 244
1
#27
8050-040022
HEAT INSULATION PAPER
$1.24¢619
1
#28
8030-040503
PIN
$2.49¢1 244
1
#29
5070-030306
CROSS SCREW,M6X12
$1.24¢619
1
#30
5070-030303
CROSS HEAD SCREW
$1.36¢681
1
#31
0110-012008
PLUG, INSPECTION
$3.74¢1 869
1
