PLASTICS 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

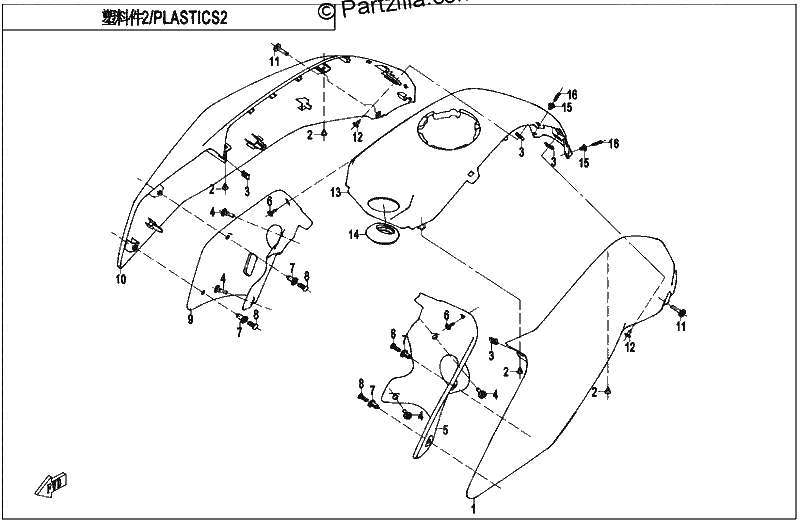

Diagrama de PLASTICS 2

Repuestos

#1
6KM0-041001-1H300
LEFT HAND PANEL, FUEL TANK, SILVER BLACK
No Disponible
1
#1
6KM0-041001-1VF00
LEFT HAND PANEL, FUEL TANK, MERCURY SILVER PLATING
No Disponible
1
#1
6KM0-041001-1V600
LEFT HAND PANEL, FUEL TANK, MATTE SILVER WHITE
No Disponible
1
#1
6KM0-041001-1BM00
LEFT HAND PANEL, FUEL TANK, NEBULA BLACK
No Disponible
1
#2
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#3
8080-000002
CLIP NUT ST4.8
$1.36¢681
1
#4
A000-060002
SCREW, CHAIN GUARD
$7.49¢3 744
1
#5
6KM0-040601
FRONT INNER SIDE PLATE, LEFT HAND
No Disponible
1
#6
30110-480160010
SELF TAPPING SCREW ST4.8X16
$3.74¢1 869
1
#7
9060-040310
PLASTIC CLIPS
$1.36¢681
1
#8
9060-040310
PLASTIC CLIPS
$1.36¢681
1
#9
6KM0-040701-10000
FRONT INNER SIDE PLATE, RIGHT HAND
No Disponible
1
#10
6KM0-041101-1BM00
RIGHT HAND PANEL, FUEL TANK, NEBULA BLACK
No Disponible
1
#10
6KM0-041101-1V600
RIGHT HAND PANEL, FUEL TANK, MATTE SILVER WHITE
No Disponible
1
#10
6KM0-041101-1H300
RIGHT HAND PANEL, FUEL TANK, SILVER BLACK
No Disponible
1
#10
6KM0-041101-1VF00
RIGHT HAND PANEL, FUEL TANK, MERCURY SILVER PLATING
No Disponible
1
#11
A000-040703
INNER HEX SCREW
$2.49¢1 244
1
#12
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#13
6KM0-040901
UPPER PROTECTION PLATE, FUEL TANK
No Disponible
1
#14
6KM0-040902-10000
DECO COVER, POWER LOCK
No Disponible
1
#15
8080-041130
PLASTIC SCREW
$1.36¢681
1
#16
8080-041130
PLASTIC SCREW
$1.36¢681
1
