LEFT CRANKCASE ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

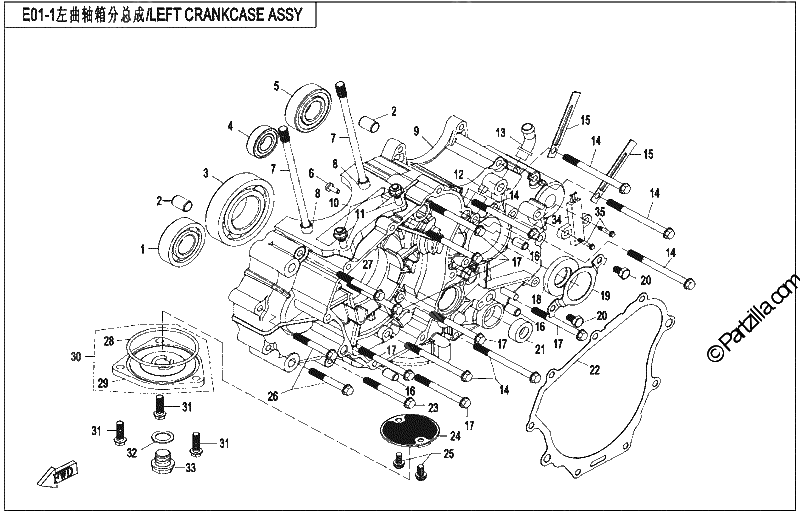

Diagrama de LEFT CRANKCASE ASSY

Repuestos

#1
30400-02006
BEARING 6204
$31.24¢15 619
1
#2
0C10-011007
DOWEL PIN, 11X16
$1.36¢681
1
#3
30400-03503
BEARING 6207
$31.24¢15 619
1
#4
30400-01502
BEARING, 6002E RZ
$7.49¢3 744
1
#5
30400-02001
BEARING 6204 RS
$9.99¢4 994
1
#6
0A70-011008
SCREW
$1.24¢619
1
#7
0010-011005-0010
BOLT B
$3.74¢1 869
1
#8
0010-011007
DOWEL PIN
$1.24¢619
1
#9
0A80-011100-1B200
LEFT HAND CRANKCASE ASSEMBLY MATTE BLACK
No Disponible
1
#9
0A80-011100-0B20
LEFT HAND CRANKCASE ASSEMBLY MATTE BLACK
$374.99¢187 494
1
#10
30202-060830
NUT M6
$1.24¢619
1
#11
30011-060025820
STUD M6X25
$2.49¢1 244
1
#12
0A70-013004
PLUG
$2.49¢1 244
1
#13
0A80-011002
JOINT, BREATHER HOSE
$6.24¢3 119
1
#14
0A70-011005
BOLT M6X75
$1.36¢681
1
#15
0180-014010
WIRE CLAMP
No Disponible
1
#16
0010-080008
DOWEL PIN 8X14
$1.36¢681
1
#17
0010-011017-0010
BOLT M6X60
$1.36¢681
1
#18
0A80-011500
OIL SEAL 20X40X6L
$6.24¢3 119
1
#19
0A70-011006
OIL SEAL COVER
$1.24¢619
1
#20
30004-060010850
BOLT M6X10
$1.36¢681
1
#21
0A70-011400
OIL SEAL 12X22X9
$3.74¢1 869
1
#22
0A80-011001
GASKET, LEFT SIDE COVER
$6.24¢3 119
1
#23
0010-021018-0010
BOLT M6X55
$1.36¢681
1
#24
0A70-011300
STRAINER COMP
$3.74¢1 869
1
#25
30113-050012430
SCREW COMP M5X12
$1.24¢619
1
#26
0180-013208-0010
BOLT M6X45
$1.36¢681
1
#27
0010-013010-0010
BOLT M6X50
$1.36¢681
1
#28
0A70-011002
O RING 60.5X2.4, OIL STRAINER COVER
$2.49¢1 244
1
#29
0A70-011004-0B20
COVER OIL STRAINER MATT BLACK
No Disponible
1
#30
0A70-0110A0-0B20
COVER ASSEMBLY OIL STRAINER BLACK
$24.99¢12 494
1
#31
0010-023010-0010
BOLT M6X20
$1.36¢681
1
#32
0180-011006
GASKET 14
$2.49¢1 244
1
#33
0A70-013007-00001
SCREW PLUG M14X1.25X12
$3.74¢1 869
1
#34
0A80-011400
SPEED SENSOR
No Disponible
1
#35
0010-030002-00001
BOLT
$1.36¢681
1
