FOOTREST REAR HANDRAIL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

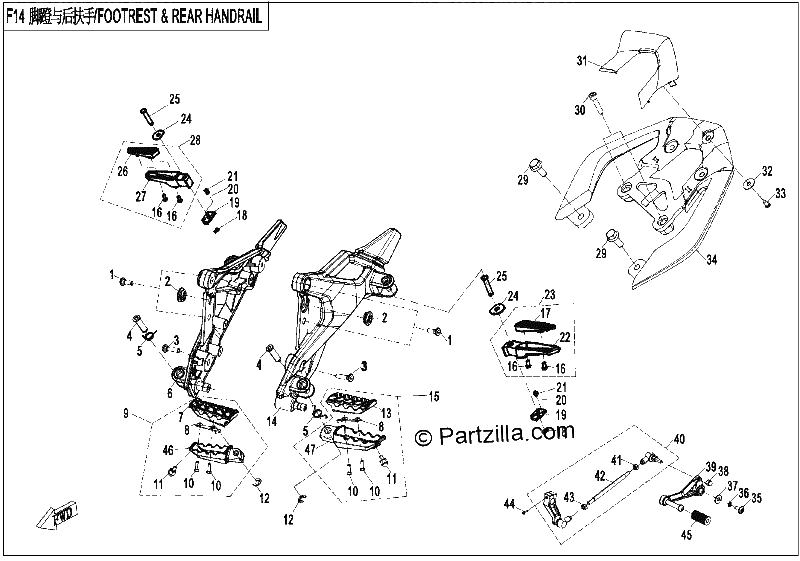

Diagrama de FOOTREST REAR HANDRAIL 1

Repuestos

#1
6100-140103
BOLT M8X25
$6.89¢3 444
1
#2
8080-040064
DAMPER, FRONT FENDER
$1.25¢627
1
#3
6KM0-140107
BOLT M8
$2.29¢1 144
1
#4
A000-140141
PIN SHAFT 12
$5.74¢2 869
1
#5
A000-140103-20000
SPRING
$2.29¢1 144
1
#6
6NT1-140140-1V100
RIGHT HAND FOOTREST BRACKET ASSEMBLY SILVER WHITE
No Disponible
1
#7
6NT1-140132
RUBBER ,FRONT FOOTREST(LEFT HAND)
No Disponible
1
#8
6NT1-140150
CONNECTING PLATE, FOOTREST
$9.19¢4 594
1
#9
6NT1-140130-1V100
FRONT RIGHT HAND FOOTREST ASSEMBLY PEARL WHITE
No Disponible
1
#10
30105-050016410
SCREW M5X16
$1.25¢627
1
#11
A010-140123
LIMIT BOLT
No Disponible
1
#12
30802-00903
SPLIT WASHER
$1.25¢627
1
#13
6NT1-140122
RUBBER ,FRONT FOOTREST(RIGHT HAND)
No Disponible
1
#14
6NT1-140110-1V100
LEFT HAND FOOTREST BRACKET ASSEMBLY SILVER WHITE
No Disponible
1
#15
6NT1-140120-2V100
FRONT LEFT HAND FOOTREST ASSEMBLY PEARL WHITE
$103.49¢51 744
1
#16
30105-050012410
SCREW M5X12
$1.25¢627
1
#17
6KJ0-140132
RUBBER, LEFT HAND FOOT PEDAL
$8.04¢4 019
1
#18
30802-00605
CIRCLIP
$1.25¢627
1
#19
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#20
5190-037814
STEEL BALL
$1.14¢569
1
#21
5190-037813
SPRING
$2.29¢1 144
1
#22
6KJ0-140151-2V100
REAR LEFT HAND FOOTREST SEAT SILVER WHITE
$22.99¢11 494
1
#23
6KJ0-140150-1V100
REAR LEFT HAND FOOTREST ASSEMBLY PEARL WHITE
$28.74¢14 369
1
#24
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#25
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#26
6KJ0-140142
RUBBER ASSEMBLY,FRONT STEP, RIGHT HAND
$11.49¢5 744
1
#27
6KJ0-140161-2V100
REAR RIGHT HAND FOOTREST SEAT SILVER WHITE
$22.99¢11 494
1
#28
6KJ0-140160-1V100
REAR RIGHT HAND FOOTREST ASSEMBLY PEARL WHITE
$28.74¢14 369
1
#29
30006-080020810
BOLT M8X20
$1.25¢627
1
#30
30102-080030810
SCREW, M8X30
$1.25¢627
1
#31
6NT1-140202
COVER, REAR HANDREST
$9.19¢4 594
1
#33
30110-421130010
SELF TAPPING SCREW ST4.2X13
$1.89¢943
1
#34
6NT1-140201-0V100
REAR ARMREST, SILVER WHITE
No Disponible
1
#34
6NT1-140201-0B200
REAR ARMREST MATTE BLACK
$114.99¢57 494
1
#35
6KM-040702-8000
INNER HEX SCREW M6X12
$1.25¢627
1
#36
30303-060112
WASHER
$1.25¢627
1
#37
30305-060112
WASHER M6
$1.25¢627
1
#38
30212-060810
CAP SHAPE BOLT M6
$2.29¢1 144
1
#39
6NT1-141001-0V100
GEARSHIFT ROD PEDAL SILVER WHITE
No Disponible
1
#40
6NT1-141100-20000
GEARSHIFT LEVER ASSEMBLY
$57.49¢28 744
1
#41
30200-060830
NUT M6
$1.14¢569
1
#42
6NT1-141102
CONNECTING ROD
No Disponible
1
#43
30200-06082L
NUT M6
$1.25¢627
1
#44
30006-060020810
BOLT M6X20
No Disponible
1
#45
0700-065404
RUBBER SLEEVE, FOOT PEDAL
$6.89¢3 444
1
#46
6NT1-140130-1V100
FRONT RIGHT HAND FOOTREST ASSEMBLY PEARL WHITE
No Disponible
1
#47
6NT1-140120-2V100
FRONT LEFT HAND FOOTREST ASSEMBLY PEARL WHITE
$103.49¢51 744
1
