FRONT SUSPENSION LOW CONFIGURATION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

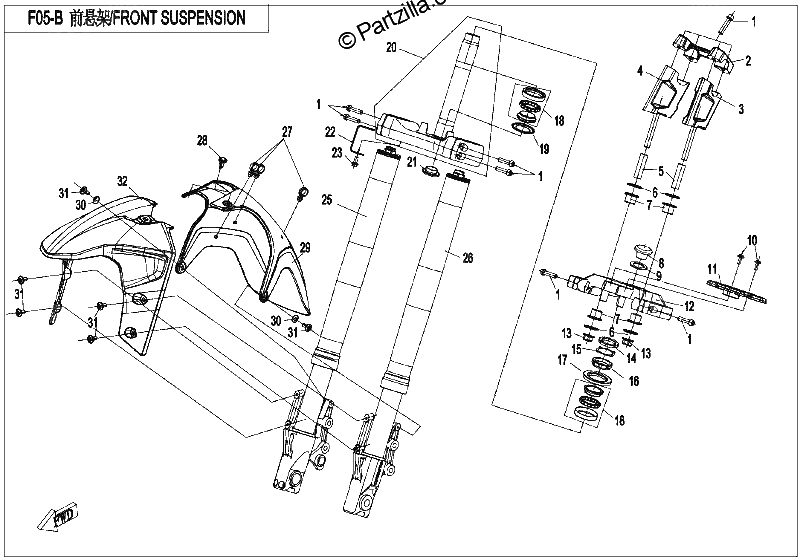

Diagrama de FRONT SUSPENSION LOW CONFIGURATION

Repuestos

#1
A000-050018
INNER HEX SCREW, M8X35
$2.29¢1 144
1
#2
6NT1-050002-0B200
PRESS COVER, HANDLEBAR MATTE BLACK
No Disponible
1
#3
6NT1-050010-0B200
LEFT HAND SUPPROT SEAT, HANDLEBAR MATTE BLACK
No Disponible
1
#5
6NT1-050005
LINER, UPPER JOINT PLATE
$4.59¢2 294
1
#6
6KJ0-050005
WASHER
$1.25¢627
1
#7
6KJ0-050004
DAMPER RUBBER,UPPER HOLDER
$1.25¢627
1
#8
6NTA-050003
LOCK SCREW, UPPER TRIPLE CLAMP
$13.79¢6 894
1
#9
A000-050004
WASHER
$1.25¢627
1
#10
A000-040202
INNER HEX SCREW M5X14
$1.25¢627
1
#11
6NTA-100118-0B200
CLIP MATTE BLACK
$10.34¢5 169
1
#12
6NT1-050001-0B200
UPPER TRIPLE CLAMP MATTE BLACK
$321.99¢160 994
1
#13
30204-102810
NUT M10X1.25
$1.25¢627
1
#14
A000-050006
LOCK NUT
$5.74¢2 869
1
#15
A000-050008
WASHER
$1.25¢627
1
#16
A000-050007
LOCK NUT
$5.74¢2 869
1
#17
A000-050009
DUST SEAL, UPPER
$1.25¢627
1
#18
A000-050100-10000
STEERING BEARING ASSEMBLY
$34.49¢17 244
1
#19
A000-050400
ANTI DUST CAP, LOWER RETAINING RING
$3.44¢1 719
1
#20
6NTG-050300
LOWER CONNECTING PLATE
No Disponible
1
#21
A000-050011
RUBBER PLUG 2
$2.29¢1 144
1
#22
6NT1-050006
CLIP, BRAKE FLUID HOSE
No Disponible
1
#23
30006-060010810
BOLT M6X10
$1.25¢627
1
#25
6NT1-050600
FRONT SHOCK ABSORBER, RIGHT HAND
No Disponible
1
#26
6NT1-050500
FRONT SHOCK ABSORBER, LEFT HAND
No Disponible
1
#27
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#28
6NTG-050002
NYLON GASKET 8
$1.25¢627
1
#29
6NT1-050004-0B800
REAR PART, FRONT FENDER MATTE PEARL BLACK
$68.99¢34 494
1
#31
A000-060002
SCREW, CHAIN GUARD
$6.89¢3 444
1
#32
6NT1-050003-0EC00
FRONT PART, FENDER, NEW ROYAL BLUE
No Disponible
1
#32
6NT1-050003-0V200
FRONT PART, FRONT FENDER, PEARL WHITE
No Disponible
1
