ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

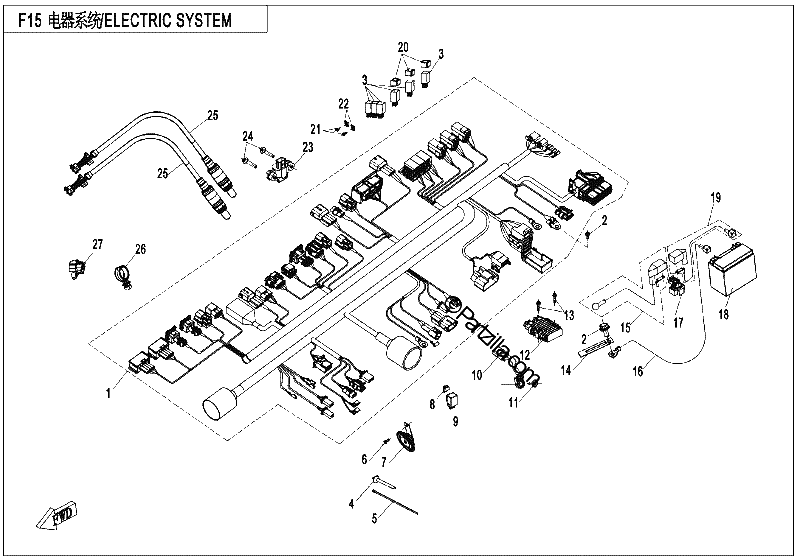

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
6NQ0-150100-10000
MAIN CABLE
No Disponible
1
#2
30006-060012870
BOLT M6X12
$0.69¢345
1
#3
A000-150800
AUXILIARY RELAY
$12.64¢6 319
1
#4
801F-100101
TIE BAND
$1.25¢627
1
#5
8010-150003
TIE BAND 5X250
$1.25¢627
1
#6
30006-080014810
BOLT M8X14
$1.25¢627
1
#7
A000-150500
HORN 12V
$22.99¢11 494
1
#8
8010-150002
CUSHION FLASHER
$2.29¢1 144
1
#9
6KJ0-150340
FLASHER
$6.89¢3 444
1
#10
6KMV-151200-8501
SIDE STAND SWITCH
$22.99¢11 494
1
#11
8010-090005
BOLT M6X16
$1.25¢627
1
#12
01AA-177000
REGULATOR
$160.99¢80 494
1
#13
30006-060030810
BOLT M6X30
$1.25¢627
1
#14
0180-014010
WIRE CLAMP
No Disponible
1
#15
A000-150200
POSITIVE CABLE, STARTING MOTO
No Disponible
1
#16
A000-150300
NEGATIVE CABLE, STARTING MOTO
$22.99¢11 494
1
#17
9010-150310-10001
STARTER RELAY
$45.99¢22 994
1
#18
31021200
BATTERY DYNAVOLT MG12 BS C
$103.49¢51 744
1
#19
A000-150700
POSITIVE CABLE, STARTER RELAY
$22.99¢11 494
1
#20
A000-150801
RUBBER, AUXILIARY RELAY
$2.29¢1 144
1
#21
30110-421130010
SELF TAPPING SCREW ST4.2X13
$1.89¢943
1
#22
8080-000002
CLIP NUT ST4.8
$1.25¢627
1
#23
6KJ0-150600
SENSOR, ROLL OVER
$34.49¢17 244
1
#24
0A70-014004-00001
BOLT M5X25
$1.25¢627
1
#25
018B-176000
OXYGEN SENSOR
$195.49¢97 744
1
#26
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#27
A000-100002
CLIP, CLUTCH CABLE
$1.25¢627
1
