CLUTCH ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

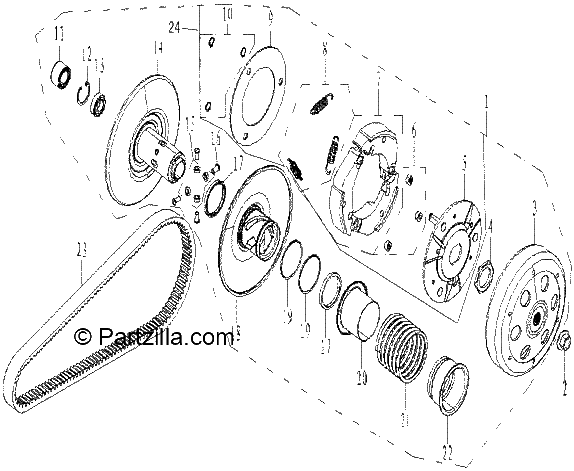

Diagrama de CLUTCH ASSY

Repuestos

#1
0120-0520A0-0001
CLUTCH Assembly
$310.49¢155 244
1
#2
0110-052008-0020
NUT M12X1.25
$2.29¢1 144
1
#3
0120-052500
CLUTCH HOUSING
$80.49¢40 244
1
#4
0120-052005
RETAINING NUT, M30x1
$4.59¢2 294
1
#5
0120-052400
DRIVE PLATE
$22.99¢11 494
1
#6
0120-052200
CUSHION BLOCK
$2.29¢1 144
1
#7
0120-052600
CLUTCH CARRIER
$57.49¢28 744
1
#8
0120-052006
RETURN SPRING, CLUTCH
$5.74¢2 869
1
#9
0120-052003
END PLATE, CLUTCH
$9.19¢4 594
1
#10
30802-00903
SPLIT WASHER
$1.25¢627
1
#11
0120-052300
NEEDLE BEARING 22X29X18
$91.99¢45 994
1
#12
30800-02815
CIRCLIP
$1.14¢569
1
#13
30405-01500
BEARING
$40.24¢20 119
1
#14
0120-052300-0001
SECONDARY FIXED SHEAVE
$114.99¢57 494
1
#15
0120-052001
GUIDE ROLLER
$2.29¢1 144
1
#16
0120-052002
GUIDE PIN
$1.14¢569
1
#17
0120-052104
OIL SEAL, SECONDARY FIXED SHEAVE
$6.89¢3 444
1
#18
0120-052100
SECONDARY SLIDING SHEAVE
$91.99¢45 994
1
#19
30500-044000N
O RING
$1.14¢569
1
#20
0120-052007
SEAL CARTRIDGE
$17.24¢8 619
1
#21
0120-052004
CLUTCH SPRING
$17.24¢8 619
1
#22
0120-052009
SLEEVE
$6.89¢3 444
1
#23
0120-053000
BELT
$91.99¢45 994
1
#24
0120-0526A0
CLUTCH SHOE COMP.
$91.99¢45 994
1
