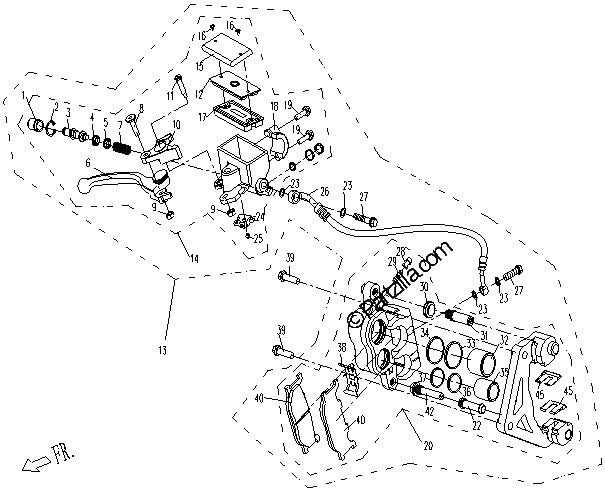

HYDRAULIC BRAKE FRONT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DUST SEAL, PISTON
$4.99¢2 494
#2
RETAINER 20
$2.49¢1 244
#3
BRAKE PUMP PISTON
$18.74¢9 369
#4
REAR RUBBER CUP
$4.99¢2 494
#5
FRONT RUBBER CUP
$4.99¢2 494
#6
FRONT,BRAKE LEVER
$49.99¢24 994
#7
RETURN SPRING
$4.99¢2 494
#8
LEVER BOLT
$3.74¢1 869
#9
NUT M6
$1.36¢681
#10
LEVER FORK
$4.99¢2 494
#11
PIN
$9.99¢4 994
#12
PAD, OIL CUP
$1.24¢619
#13
FRONT HYDRAULIC BRAKE Assembly.
$224.99¢112 494
#14
FRONT BRAKE PUMP COMP.
$99.99¢49 994
#15
COVER, OIL CUP
$3.74¢1 869
#16
SCREW, M4X12 (ARMY GREEN)
$1.24¢619
#17
GASKET, OIL CUP
$4.99¢2 494
#18
SEMI COVER
$3.74¢1 869
#19
BOLT, M6X30 (ARMY GREEN)
$1.24¢619
#20
FRONT BRAKE CALIPER COMP.
$124.99¢62 494
#22
RUBBER COLLAR, SECONDARY SLIDING SHAFT
$2.49¢1 244
#23
SEAL WASHER
$2.49¢1 244
#24
DUST SEAL, PISTON
$4.99¢2 494
#25
SCREW COMP.
$1.24¢619
#26
FRONT BRAKE HOSE COMP.
$62.49¢31 244
#27
OIL FILTRATION BOLT
$1.24¢619
#28
RUBBER CASE, BLEED BOLT
$1.24¢619
#29
BLEED BOLT
$1.24¢619
#30
RUBBER COLLAR, MAIN SLIDING SHAFT
$1.24¢619
#31
MAIN SLIDING SHAFT
$2.49¢1 244
#32
PISTON, BIG BRAKE CALIPER
$6.24¢3 119
#33
DUST SEAL, BIG PISTON
$3.74¢1 869
#34
BIG RECTANGULAR SEAL RING
$2.49¢1 244
#35
PISTON, SMALL BRAKE CALIPER
$6.24¢3 119
#36
DUST SEAL, SMALL PISTON
$2.49¢1 244
#37
SMALL RECTANGULAR SEAL RING
$1.24¢619
#38
BRAKE PAD TONGUE
$2.49¢1 244
#39
BOLT M8X35
$1.36¢681
#40
FRONT BRAKE PAD
$49.99¢24 994
#41
CALIPER BODY
$62.49¢31 244
#42
SECONDARY SLIDING SHAFT
$2.49¢1 244
#43
OIL SCREEN
$3.74¢1 869
#44
GASKET, OIL SCREEN
$1.24¢619
#45
GASKET
$4.99¢2 494
