FRONT SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

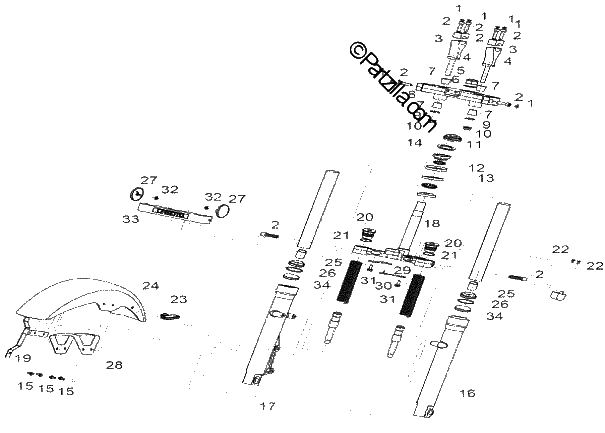

Diagrama de FRONT SUSPENSION

Repuestos

#1
8050-040019
SCREW CAP
$3.74¢1 869
1
#2
30102-080030840
BOLT
No Disponible
1
#3
8050-050413
HANDLEBAR BRACE CAPPING
$11.24¢5 619
1
#4
8050-050412
HANDLEBAR SUPPORT
$37.49¢18 744
1
#5
8030-050007
LOCK NUT,UPPER JOINT PLATE
$4.99¢2 494
1
#6
8030-050006
GASKET,UPPER JOINT PLATE
$1.24¢619
1
#7
8050-050414
RUBBER CUSHION, HANDLE BAR SUPPORT
$3.74¢1 869
1
#8
8050-050411
UPPER JOINT PLATE, FRONT FORK
$54.07¢27 037
1
#9
30305-100142
WASHER 10
$3.74¢1 869
1
#10
30206-102540
NUT M10X1.25
$1.24¢619
1
#11
8030-050420
LOCK NUT
$3.74¢1 869
1
#12
8030-050103
UPPER BEARING COMP
$8.74¢4 369
1
#13
8030-050104
LOWER BEARING COMP.
$11.24¢5 619
1
#14
8010-320029
WASHER26*36*1.5
$1.24¢619
1
#15
30006-060012870
BOLT M6X12
$0.75¢375
1
#16
8050-050100
FRONT ABSORBER(Left Hand) (STANDARD)
$124.99¢62 494
1
#16
8050-050100-A000
FRONT ABSORBER(Left Hand) (QLINK)
$149.99¢74 994
1
#17
8050-050200-A000
FRONT ABSORBER(Right Hand) (QLINK)
$149.99¢74 994
1
#17
8050-050200
FRONT ABSORBER(Right Hand) (STANDARD)
$124.99¢62 494
1
#18
8050-050310
LOWER JOINT PLATE, FRONT FORK
$112.49¢56 244
1
#19
8050-050500
BRACKET,FRONT LICENSE PLATE
$8.74¢4 369
1
#20
8050-050102
SEAL COVER
$12.49¢6 244
1
#21
8050-050103
TOP SEAL RING
$2.49¢1 244
1
#22
30107-060012440
SCREW M6X12
$1.24¢619
1
#23
8030-050001
CLIP, FLEXIBLE SHAFT CABLE COMP.
$4.99¢2 494
1
#24
8050-050011-0B50
FRONT FENDER (TITANIUM GREY)
$87.49¢43 744
1
#24
8050-050011-0E20
FRONT FENDER (DARK BLUE)
$87.49¢43 744
1
#24
8050-050011-0H00
FRONT FENDER (SILVER GREY)
$87.49¢43 744
1
#24
8050-050011-0V10
FRONT FENDER (SILVER WHITE)
$87.49¢43 744
1
#24
8050-050011-0Y30
FRONT FENDER (GOLDEN YELLOW)
$87.49¢43 744
1
#24
8050-050011-0B00
FRONT FENDER (BLACK)
$187.49¢93 744
1
#25
8030-050106
SEAL RING
$12.49¢6 244
1
#26
8030-050107
SPRING, SEAL RING
$4.99¢2 494
1
#27
8050-160220
SIDE REFLECTOR
$6.24¢3 119
1
#28
8050-040088
INNER PLATE, FRONT FENDER
$49.99¢24 994
1
#29
8030-050314
OIL PIPE CLIP
$2.49¢1 244
1
#30
8030-050313
CLIP, FLEXIBLE SHAFT CABLE COMP.
$2.49¢1 244
1
#31
30006-060016810
BOLT M6X16
$1.36¢681
1
#32
30202-050110
NUT M5
$1.36¢681
1
#33
8050-040017-A000
FRONT ORNAMENT BAR (BLANK)
$62.49¢31 244
1
#33
8050-040017
FRONT ORNAMENT BAR (CFMOTO LOGO)
$21.24¢10 619
1
