CYLINDER HEAD ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

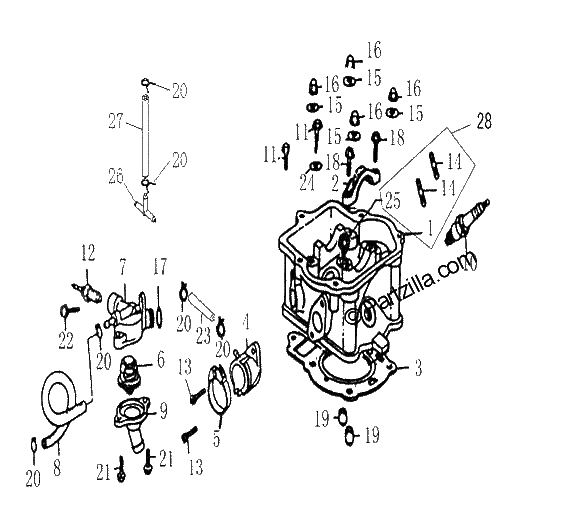

Diagrama de CYLINDER HEAD ASSY

Repuestos

#1
0110-022100-0080
CYLINDER HEAD COMP.
$224.99¢112 494
1
#2
0010-022014
COVER, CAMSHAFT BEARING
$6.24¢3 119
1
#3
0110-022010
GASKET, CYLINDER HEAD
$21.24¢10 619
1
#4
0110-022900
JOINT COMP., CARBURETOR
$22.49¢11 244
1
#5
0110-022500
CLAMP SET, INTAKE
$3.74¢1 869
1
#6
0010-022810
THERMOSTAT COMP.
$28.74¢14 369
1
#7
0010-0228B0-1080
UPPER CASE, THERMOSTAT
$18.74¢9 369
1
#7
0010-022600
WATER TEMPERATURE SENSOR
$49.99¢24 994
1
#8
0010-022021
COOLING HOSE, CARBURETOR
$1.24¢619
1
#9
0110-022601-0080
LOWER CASE, THERMOSTAT
$8.74¢4 369
1
#10
0800-022800
SPARK PLUG
$13.74¢6 869
1
#11
0010-021017-0010
BOLT M6X25
$1.36¢681
1
#12
0010-022600
WATER TEMPERATURE SENSOR
$49.99¢24 994
1
#13
30102-060018830
SCREW, INNER HEX HEAD
$1.24¢619
1
#14
0110-022007-0010
STUD, EXHAUST PIPE
$1.24¢619
1
#15
0010-022012
WASHER M8
$1.36¢681
1
#16
0010-022013-0020
NUT M8
$3.74¢1 869
1
#17
0010-022804
O RING, 14.8x1.9
$1.24¢619
1
#18
0010-022020-00002
BOLT M6x22
$1.36¢681
1
#19
0010-021005
DOWEL PIN f 10x14
$1.36¢681
1
#20
30601-106530
CLIP
$1.24¢619
1
#21
0010-090005-0010
BOLT M6X16
$1.36¢681
1
#22
0010-023008-00001
BOLT
$1.36¢681
1
#23
0010-022017
BREATHER HOSE, CARB
$1.24¢619
1
#24
30300-060122
WASHER
$1.24¢619
1
#24
0010-080011
WASHER 6
$1.36¢681
1
#25
0010-022303-0020
SCREW PLUG M12X1
$1.24¢619
1
#26
0040-022017
VACUUM T JOINT
$2.49¢1 244
1
#27
0040-022019
VACUUM TUBE 77
$2.49¢1 244
1
#28
0110-0221A0
CYLINDER HEAD COMP.
$224.99¢112 494
1
