CRANKCASE ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

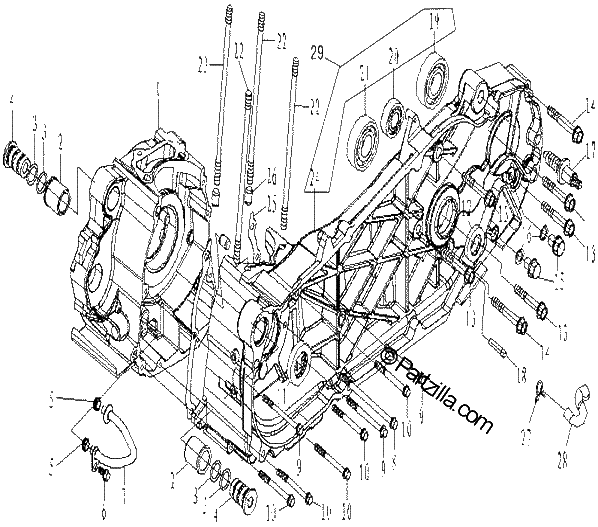

Diagrama de CRANKCASE ASSY

Repuestos

#1
0120-011200-0080
RIGHT CRANKCASE COMP.
$174.99¢87 494
1
#2
0010-011010-0050
OUTER BUSH, ENGINE HANGER
$6.24¢3 119
1
#3
0010-011008
O RING, 15.8X2.4
$1.36¢681
1
#4
0010-011009-0050
INNER BUSH, ENGINE HANGER
$6.24¢3 119
1
#5
0110-011002
SEAL RING, INNER OIL PIPE
$1.24¢619
1
#6
0010-021019-0010
BOLT M6X12
$2.49¢1 244
1
#7
0110-011400-0010
INNER OIL PIPE SET
$6.24¢3 119
1
#8
0030-011006-0030
BOLT M6x105
$2.49¢1 244
1
#9
0020-011018-0030
BOLT M6x70
No Disponible
1
#10
0010-011017-0030
BOLT Mx60
$1.24¢619
1
#11
0110-011001-000F
SEAL, 28X40X8
$12.49¢6 244
1
#12
30501-022000F
OIL SEAL
$12.49¢6 244
1
#13
0040-012006-0010
BOLT M8x50
$2.49¢1 244
1
#14
0030-011007-0030
BOLT M8x55
$2.49¢1 244
1
#15
0010-060011-0030
RETAINER D22 (M10?1.25)
$1.24¢619
1
#16
0010-060010
WASHER M10
$3.74¢1 869
1
#17
0120-011006-0050
REAR SUSPENSION SHAFT
$12.49¢6 244
1
#18
0110-013010-0010
JOINT, BREATHER
$3.74¢1 869
1
#19
30499-02000
BEARING 6304
$49.99¢24 994
1
#20
30499-01500
BEARING 6202
$21.24¢10 619
1
#21
30499-02200
BEARING, 22x50x14
$49.99¢24 994
1
#22
0110-011004-0010
BOLT A, CYLINDER STUD
$4.99¢2 494
1
#23
0110-011005-0010
BOLT B, CYLINDER STUD
$3.74¢1 869
1
#24
0120-011100-0080
LEFT CRANKCASE COMP.
$249.99¢124 994
1
#25
0110-011003-0E00
GASKET, CRANKCASE (BLACK, NO ASBESTO)
$3.74¢1 869
1
#26
0010-021005
DOWEL PIN f 10x14
$1.36¢681
1
#27
30601-110010
CLAMP D10
$1.36¢681
1
#28
0120-011007
BREATHER HOSE,GEARBOX
$4.99¢2 494
1
#29
0120-0111A0
LEFT CRANKCASE COMP.
$374.99¢187 494
1
#30
0120-AA0000-0840
V3/V5(carburetor)ENGINE Assembly.
$1624.99¢812 494
1
