CLUTCH ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

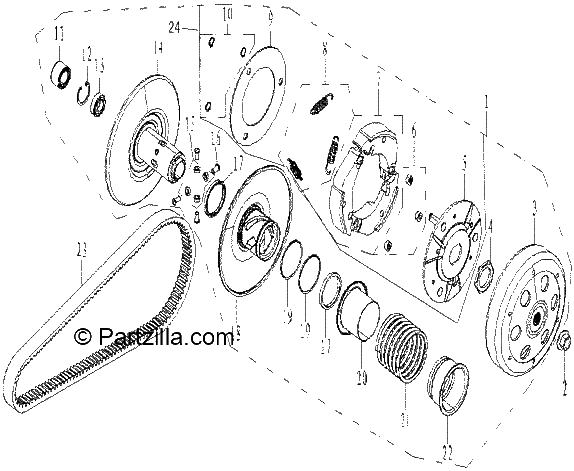

Diagrama de CLUTCH ASSY

Repuestos

#1
0120-0520A0-0001
CLUTCH Assembly
$337.49¢168 744
1
#2
0110-052008-0020
NUT M12X1.25
$2.49¢1 244
1
#3
0120-052500
CLUTCH HOUSING
$87.49¢43 744
1
#4
0120-052005
RETAINING NUT, M30x1
$4.99¢2 494
1
#5
0120-052400
DRIVE PLATE
$24.99¢12 494
1
#6
0120-052200
CUSHION BLOCK
$2.49¢1 244
1
#7
0120-052600
CLUTCH CARRIER
$62.49¢31 244
1
#8
0120-052006
RETURN SPRING, CLUTCH
$6.24¢3 119
1
#9
0120-052003
END PLATE, CLUTCH
$9.99¢4 994
1
#10
30802-00903
SPLIT WASHER
$1.36¢681
1
#11
0120-052300
NEEDLE BEARING 22X29X18
$99.99¢49 994
1
#12
30800-02815
CIRCLIP
$1.24¢619
1
#13
30405-01500
BEARING
$43.74¢21 869
1
#14
0120-052300-0001
SECONDARY FIXED SHEAVE
$124.99¢62 494
1
#15
0120-052001
GUIDE ROLLER
$2.49¢1 244
1
#16
0120-052002
GUIDE PIN
$1.24¢619
1
#17
0120-052104
OIL SEAL, SECONDARY FIXED SHEAVE
$7.49¢3 744
1
#18
0120-052100
SECONDARY SLIDING SHEAVE
$99.99¢49 994
1
#19
30500-044000N
O RING
$1.24¢619
1
#20
0120-052007
SEAL CARTRIDGE
$18.74¢9 369
1
#21
0120-052004
CLUTCH SPRING
$18.74¢9 369
1
#22
0120-052009
SLEEVE
$7.49¢3 744
1
#23
0120-053000
BELT
$99.99¢49 994
1
#24
0120-0526A0
CLUTCH SHOE COMP.
$99.99¢49 994
1
